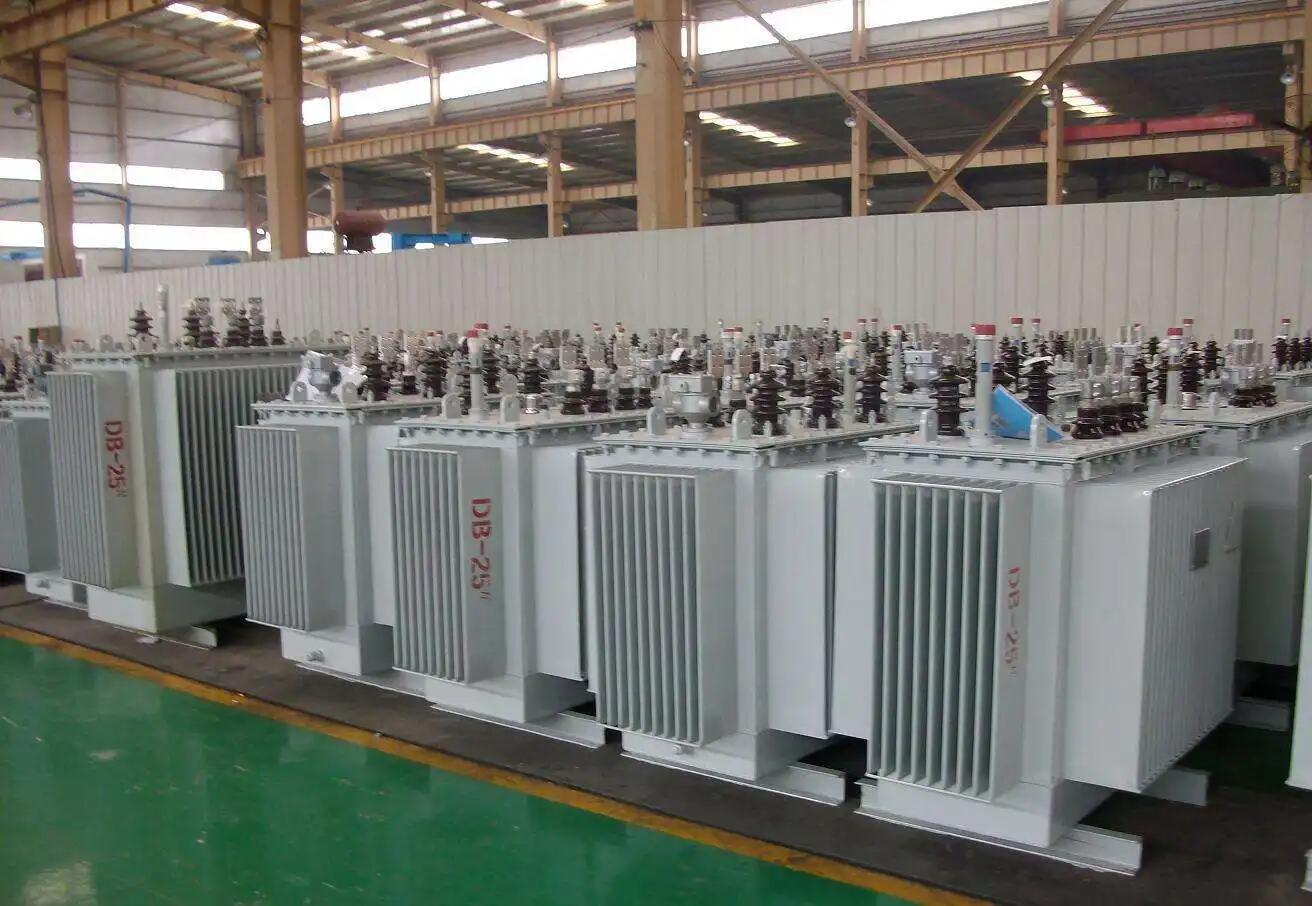

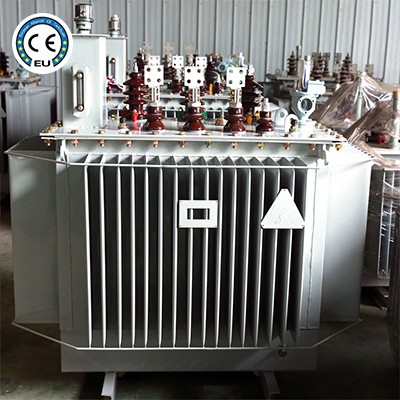

500KV·A distribution transformer, oil transformer factory
Oil-immersed transformers employ oil for insulation and cooling in a variety of applications. The transformer's primary components include a core, winding, oil tank, oil pillow, breather, explosion-proof pipe, radiator, insulating bushing, tap changer, gas relay, thermometer, and oil purifier. Long-term soaking allows oil to infiltrate the layers of silicon steel sheets, but it also functions as a buffer, lowering noise. The voltage regulating switch is located inside the gasoline tank, and proper contact during voltage regulation is critical to preventing circuit openness and the switch from burning out when the load is too high.
| Use | Power |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | AUTOTRANSFORMER |
Other Attributes
| Place of Origin | Shandong, China |
| Brand Name | Jinshida |
| Model Number | SCB11-30~1600/,S11-30~1600/ |
| Input Voltage | 10kv |
| Product name | Three Phase Transformer |
| Rated capacity | 400kVA |
| Frequency | 50Hz/60Hz |
| Standard | ISO9001: 2008 |
| Name | High Fequency Transformer |
| Rated voltage | 22KV |
| Warranty | 24 Months |
| Cooling Method | ONAN |
| Capacity | 400kva |
Selling Units | Single item |
Single package size | 1260X820X1240 cm |
Single gross weight | 50.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |

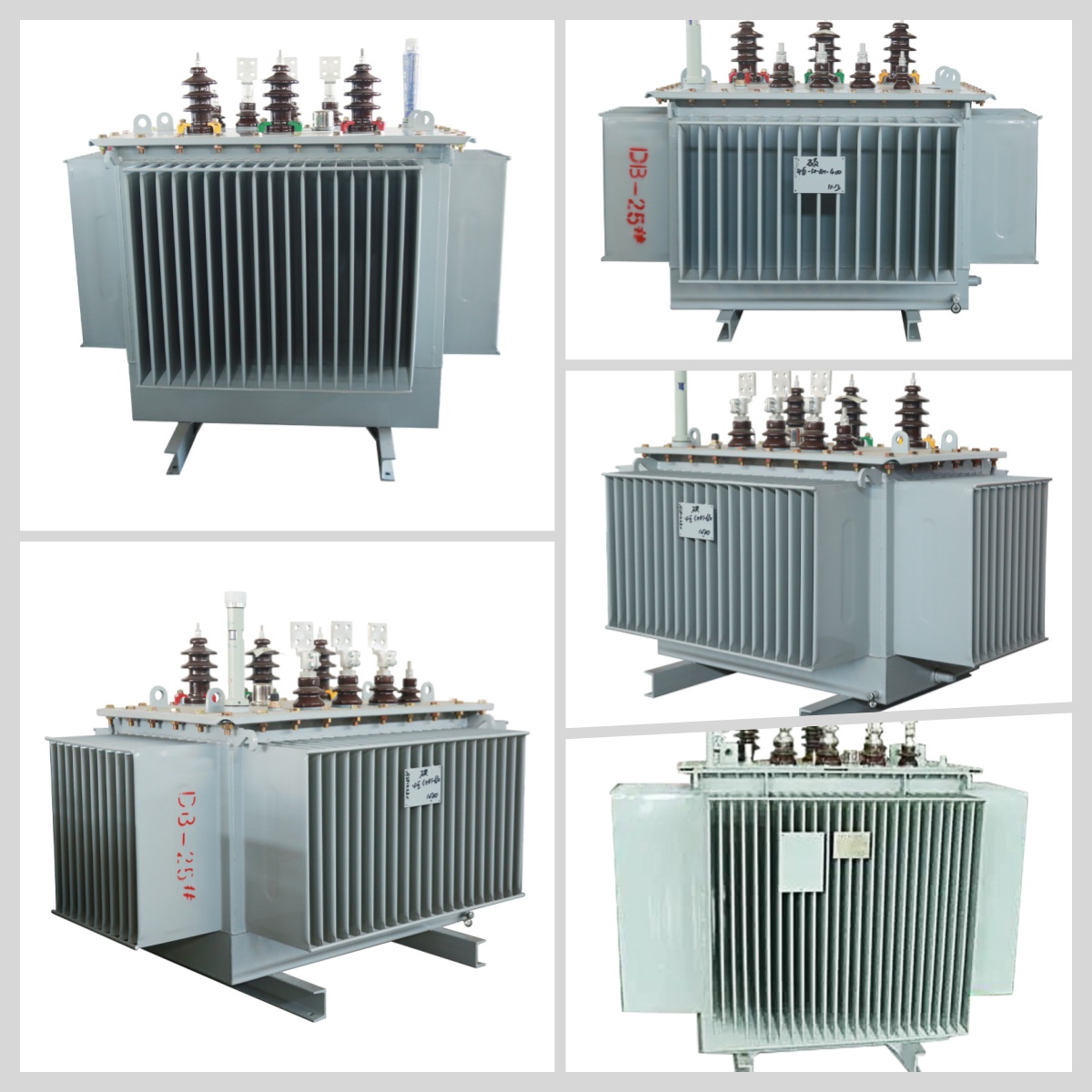

Customized Various Models
Product Process
Product Accessories
Application
Our products can be used in various industries such as power industry, urban construction, ports, etc.
