Heat Diffusion Performance: The unique technology allows for the removal of the encapsulating resin layer, enabling better heat diffusion of the coils.
Mechanical Strength: The coils are reinforced with glass fiber cloth, increasing their mechanical strength and ability to resist emergent short circuits, thus preventing fractures in the castings.

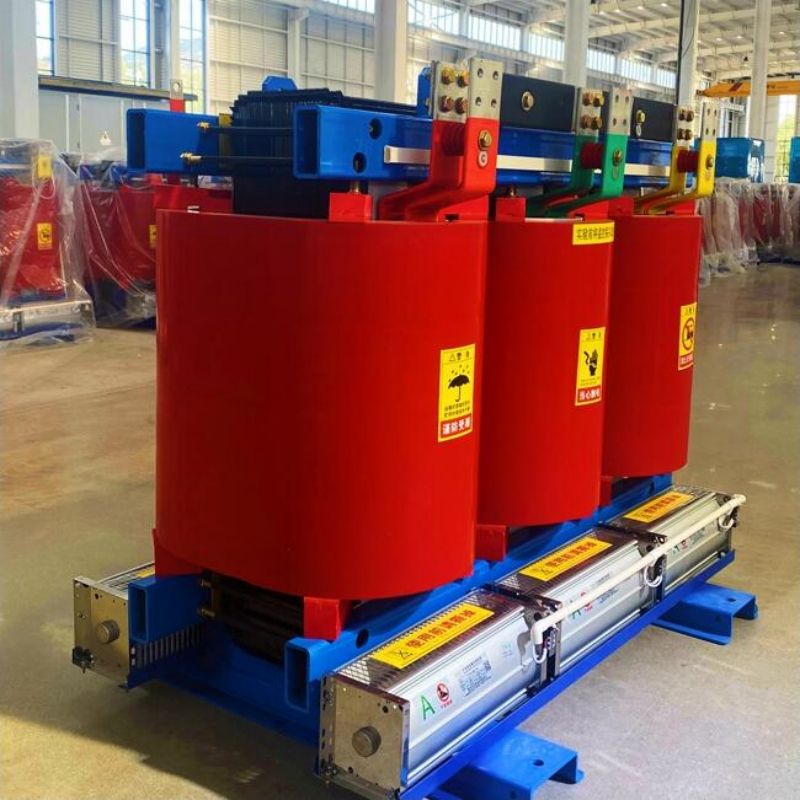

The product is structurally distinguished by subsection cylindrical windings castinto formation by chopped glass fiber with axial air passageways provided inside to permit heat diffusion. The appropriate cast technology helps resin penetrate to every gap between windings, layers and subsections to ensure the electrical insulation strength and a low partial discharge value(≤ 5pc)Prevention of fracturing on castings, restraint of bubble in the casting and reduction of partial discharge value to a minimum are always considered a great challenge to worldwide transformer manufacturers and critical to the manufacturing of cast resindry-type transformer.
Industry-Specific Attributes
About Us
"Shandong jinshida Transformer Co.Ltd. is the unique service provider of power transmission and distribution equipment in electrical industry since2001.By operating with industrial partnersand contractors, jinshida Electric has an established international network in more than 40 counties. jinshida Electric is devoted to providesafe, high efficient and intelligent power transformation and distribution solution, focusing on R&D, manufacturing, sales and service.
Our Advantages
1.Reliable Power Transformer Since 2001, Top 1 transformer manufacturer in nuclear power industry
2. High R&D capacity to support customerized design
3. Complete Quality Assurance System
4. Full set of test report
5. localized technical backup and aftersales

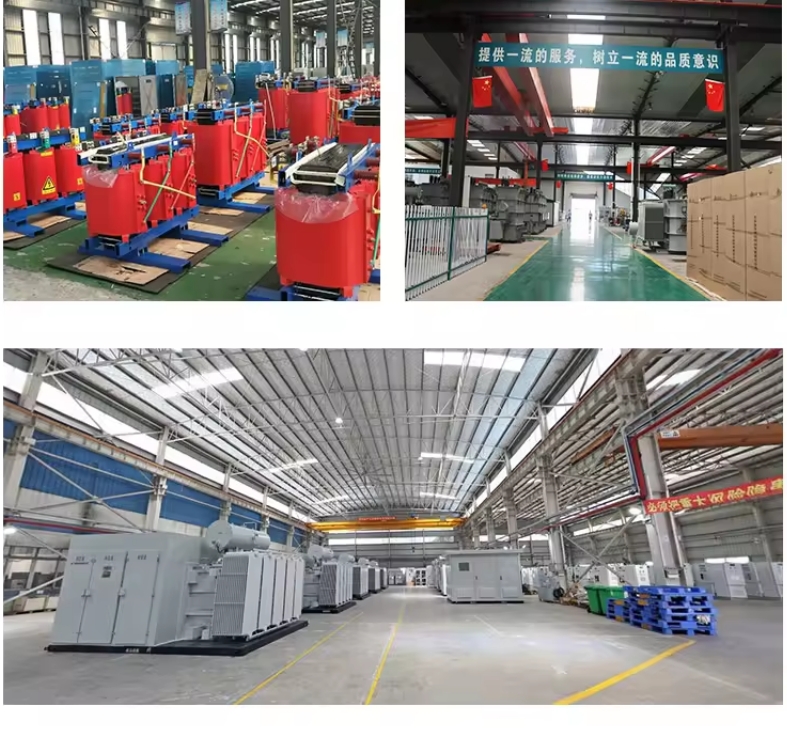

Sample Room
Product Accessories

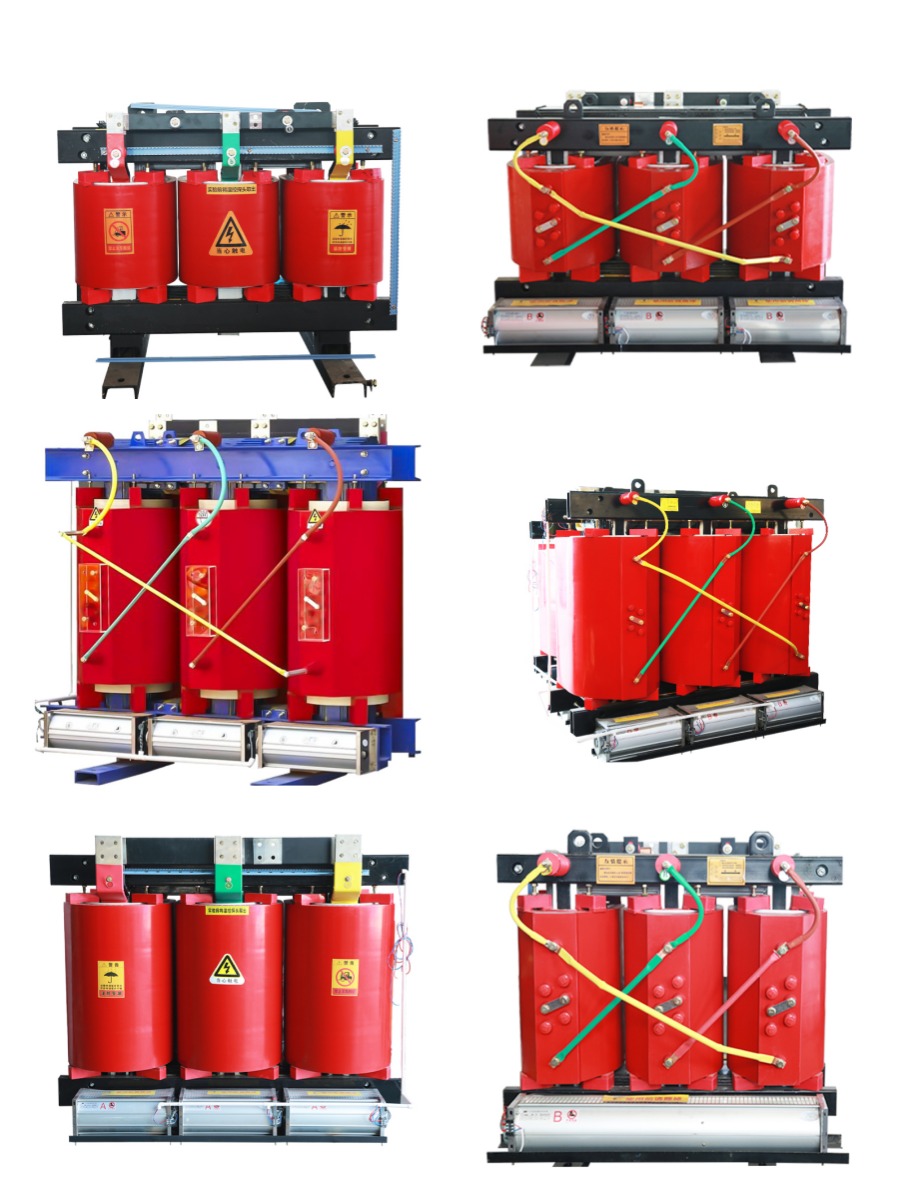

Product Details
Product Parameters

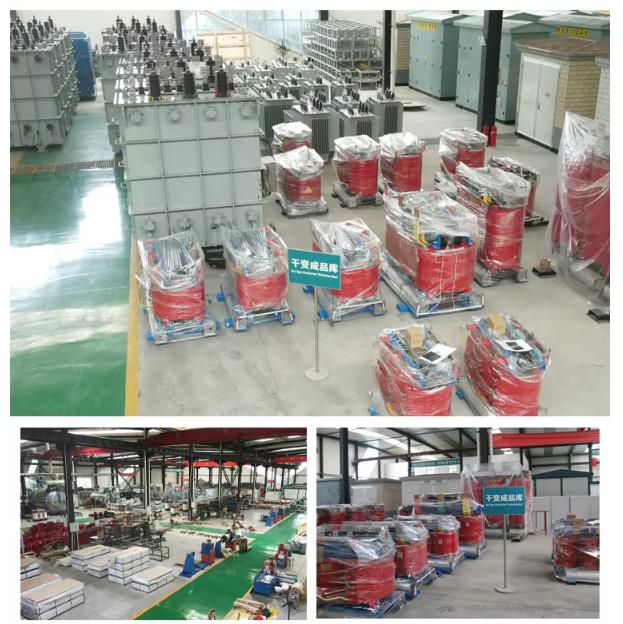

Packing and Shipping
Certificate
FAQ
1.Guide to 0il-Filled Transformers Maintenance Routine transformer maintenance isn't a one-time thing. it would be best if you drafted individual daily, weekly,monthly, and yearly maintenance strategies. Additionally, you will have to specify different transformerma intenance elements for each period.
2.Guide to Dry Type Transformer Maintenance(1)Check transformer dust accumulation and clean up.(2)Transformer turns ratio experiment and dielectric absorption experiment were carried out
3. Leading time
For standard product, approximately 15 working days before delivery.
For customized product, approximately 20~30 working days before delivery.
Order quantity/customization requirements can also affect the leading time.
4.Warranty/ Payment terms
2 years of warranty at least.For the first order we normally accept T/T, 30%+70%. Regular customer payment terms to be negotiated by both parties.
