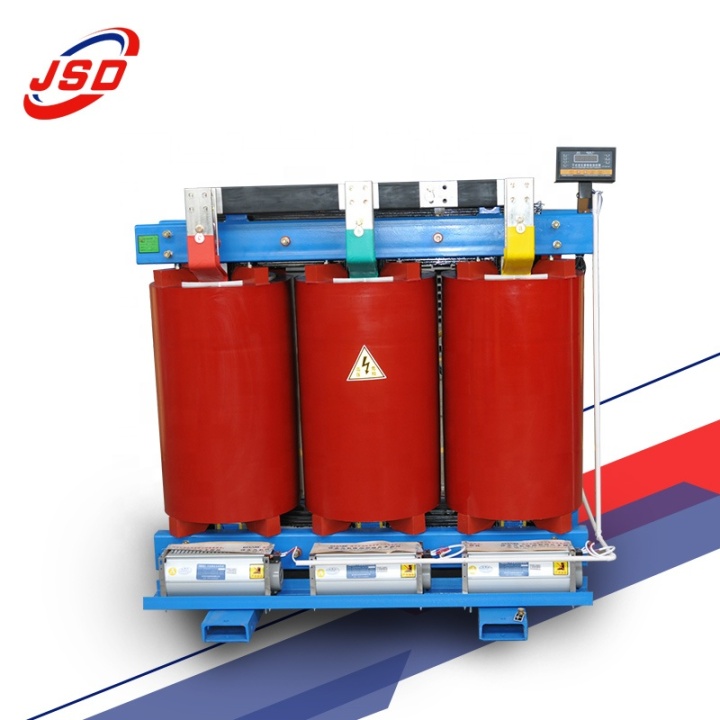

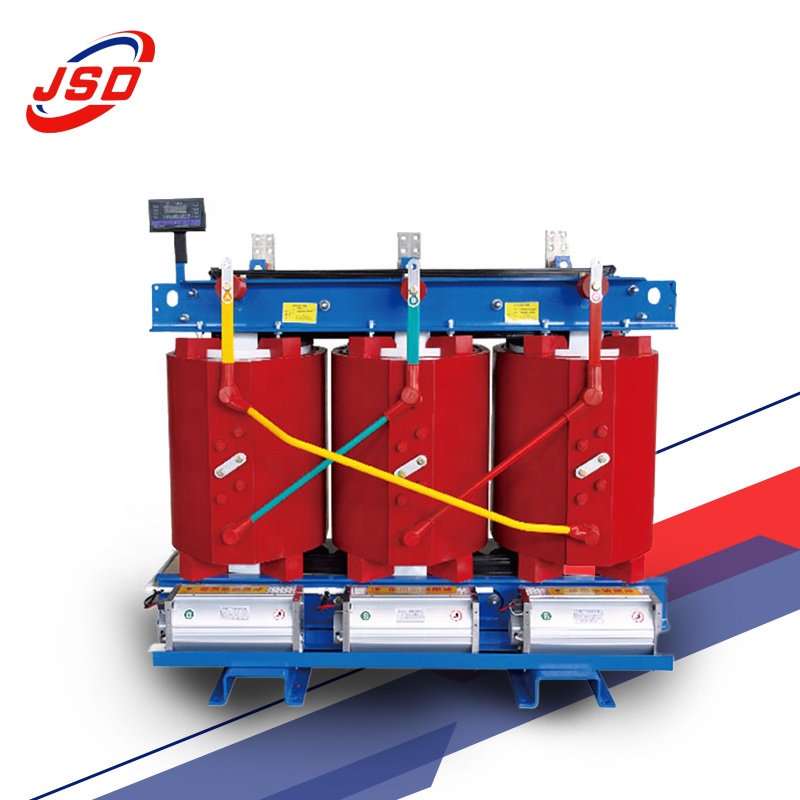

The iron core of the dry-type power transformer is made of high-permeability, high-quality grain-oriented cold-rolled silicon steel sheets with 45° fully inclined step joints. The iron core adopts a special square tube pull plate structure. The core columns are bound with insulating tape. The surface of the iron core Coated with special resin to prevent moisture and rust, it effectively reduces no-load loss, no-load current and core noise.
SCB13 dry-type transformer manufacturer Shandong Jinshida Transformer Co., Ltd. is a company specializing in the production of dry-type transformers. The company has advanced production equipment and technical team, able to provide high-quality SCB13 dry-type transformers. The company adheres to strict technological processes and strict product quality!
Main Technical Parameters for 10KV SC ( B ) -30-2500TYPE | |||||||||
Rated Power ( kva ) | Higl Voltage ( kv ) | H. V. Tap range | LOW Voltage ( kv ) | Connection symbol | Short Circuit Impendence (%) | No-load loss ( KW ) | On-load loss ( KW ) | ||
sc(B)9 | sc(B)10 | sc(B)9 | sc(B)9 | ||||||
16 | 6 6.3 10 10.5 11 15 | ±5% ±2x2.5% | 0.4 | Dyn11 | 6 | 220 | 190 | 750 | 710 |
50 | 310 | 270 | 1060 | 1000 | |||||
80 | 420 | 370 | 1460 | 1380 | |||||
100 | 450 | 400 | 1670 | 1570 | |||||
125 | 530 | 470 | 1960 | 1850 | |||||
160 | 610 | 540 | 2250 | 2130 | |||||
200 | 700 | 620 | 2680 | 2530 | |||||
250 | 810 | 720 | 2920 | 2760 | |||||
300 | 990 | 880 | 3670 | 3470 | |||||
400 | 1100 | 980 | 4220 | 3990 | |||||
500 | 1310 | 1160 | 5170 | 4880 | |||||
630 | 1510 | 1340 | 6220 | 5880 | |||||
630 | 1460 | 1300 | 6310 | 5960 | |||||
800 | 1710 | 1520 | 7360 | 6960 | |||||
1000 | 1990 | 1770 | 8610 | 8130 | |||||
1250 | 2350 | 2090 | 10260 | 9690 | |||||
1600 | 2760 | 2450 | 12400 | 11730 | |||||
2000 | 3400 | 3050 | 15300 | 14450 | |||||
2500 | 4000 | 3600 | 18180 | 17170 | |||||
