Dry-type transformers are widely used in local lighting, high-rise buildings, airports, terminals, CNC machinery and equipment, etc. Simply put, dry-type transformers refer to transformers whose core and windings are not immersed in insulating oil.
Cooling methods are divided into natural air cooling (AN) and forced air cooling (AF). When naturally air-cooled, the transformer can operate continuously for a long time at rated capacity.

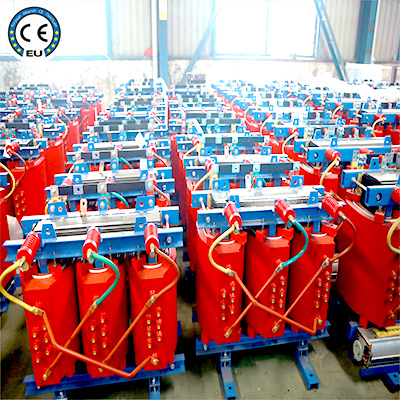

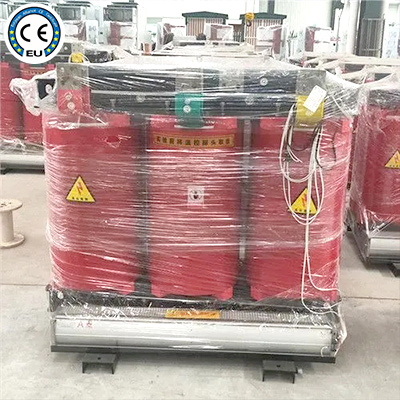

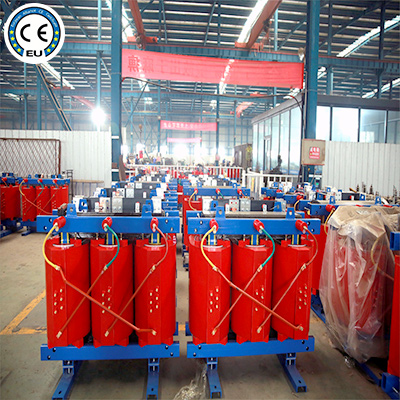

Dry Type Transformers |500KVA 10MVAdry type transformer manufacturer
Dry-type transformers are widely used in local lighting, high-rise buildings, airports, terminals, CNC machinery and equipment, etc. Simply put, dry-type transformers refer to transformers whose core and windings are not immersed in insulating oil.
Cooling methods are divided into natural air cooling (AN) and forced air cooling (AF). When naturally air-cooled, the transformer can operate continuously for a long time at rated capacity.
Main Technical Parameters for 10KV SC ( B ) -30-2500TYPE | |||||||||
Rated Power ( kva ) | Higl Voltage ( kv ) | H. V. Tap range | LOW Voltage ( kv ) | Connection symbol | Short Circuit Impendence (%) | No-load loss ( KW ) | On-load loss ( KW ) | ||
sc(B)9 | sc(B)10 | sc(B)9 | sc(B)9 | ||||||
16 | 6 6.3 10 10.5 11 15 | ±5% ±2x2.5% | 0.4 | Dyn11 | 6 | 220 | 190 | 750 | 710 |
50 | 310 | 270 | 1060 | 1000 | |||||
80 | 420 | 370 | 1460 | 1380 | |||||
100 | 450 | 400 | 1670 | 1570 | |||||
125 | 530 | 470 | 1960 | 1850 | |||||
160 | 610 | 540 | 2250 | 2130 | |||||
200 | 700 | 620 | 2680 | 2530 | |||||
250 | 810 | 720 | 2920 | 2760 | |||||
300 | 990 | 880 | 3670 | 3470 | |||||
400 | 1100 | 980 | 4220 | 3990 | |||||
500 | 1310 | 1160 | 5170 | 4880 | |||||
630 | 1510 | 1340 | 6220 | 5880 | |||||
630 | 1460 | 1300 | 6310 | 5960 | |||||
800 | 1710 | 1520 | 7360 | 6960 | |||||
1000 | 1990 | 1770 | 8610 | 8130 | |||||
1250 | 2350 | 2090 | 10260 | 9690 | |||||
1600 | 2760 | 2450 | 12400 | 11730 | |||||
2000 | 3400 | 3050 | 15300 | 14450 | |||||
2500 | 4000 | 3600 | 18180 | 17170 | |||||
