1. Utilizes a continuous coil construction for superior heat dissipation and great mechanical strength, along with VPI vacuum pressure impregnation for increased moisture resistance and longevity.
2. Fulfills European requirements for fire, weather, and climatic resistance.
3. To accommodate rising urban power demands, capacity is increased from 50–2500kVA to 10000–20,000kVA/35kV.
4. Brings together functions such as covered busbars, zero sequence transformers, temperature monitoring interfaces, air conditioning, protective enclosures, and power metering.
The no-load loss in the transformer loss, that is, the iron loss, mainly occurs in the transformer core lamination. It is mainly caused by the hysteresis and eddy current generated by the alternating magnetic lines of force passing through the core. The earliest material used for the transformer core was soft wrought iron that was easy to magnetize and demagnetize. The transformer core was made of iron wires rather than a whole piece of iron. In order to overcome the magnetic resistance produced by periodic magnetization in the magnetic circuit losses and eddy currents generated by the alternating magnetic flux in the core. The iron core made of wire harness can effectively reduce the cross-sectional area of the eddy current path.
Our Advantages
1. Excellent Reliability: Utilizes a continuous coil construction for superior heat dissipation and great mechanical strength, along with VPI vacuum pressure impregnation for increased moisture resistance and longevity.
2. Eco-Friendly Certification: Fulfills European requirements for fire, weather, and climatic resistance.
3. High Capacity: To accommodate rising urban power demands, capacity is increased from 50–2500kVA to 10000–20,000kVA/35kV.
4 Multi-Functional Integration: Brings together functions such as covered busbars, zero sequence transformers, temperature monitoring interfaces, air conditioning, protective enclosures, and power metering.

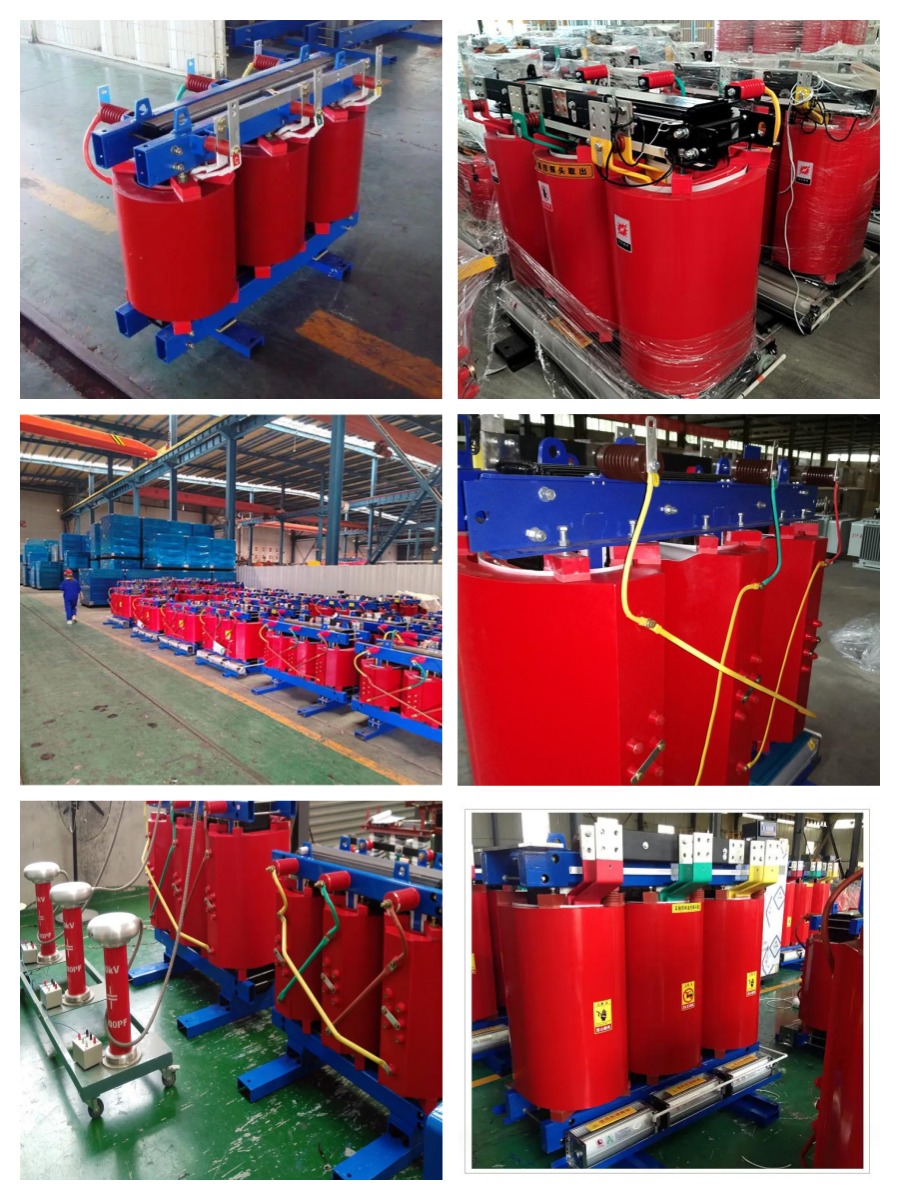

Sample Room
Product Process
Product Accessories
Product Parameters
12400 |
15300 |
Packing and Shipping
Certificate
