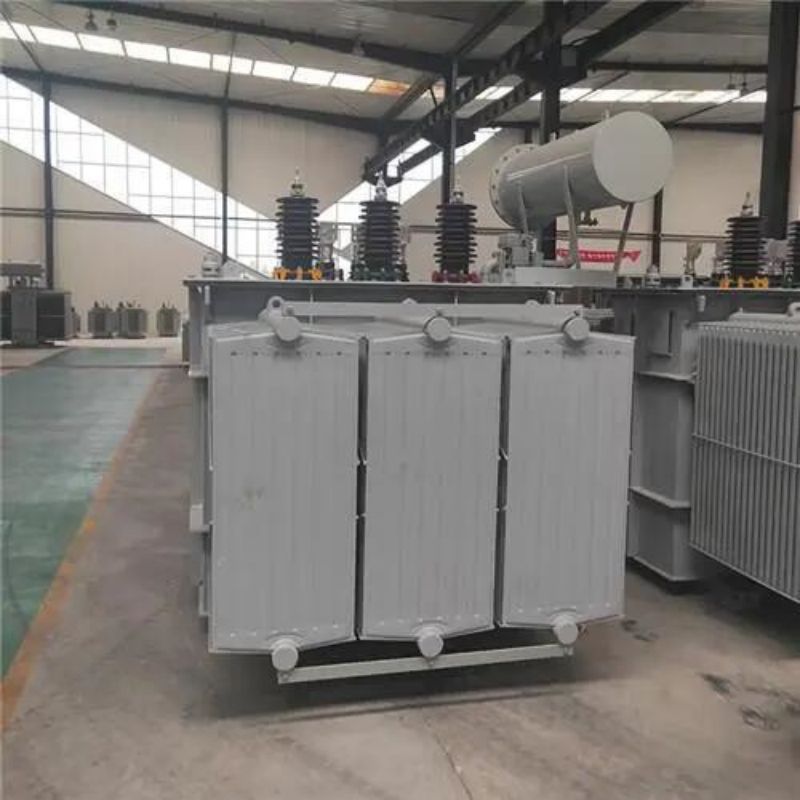

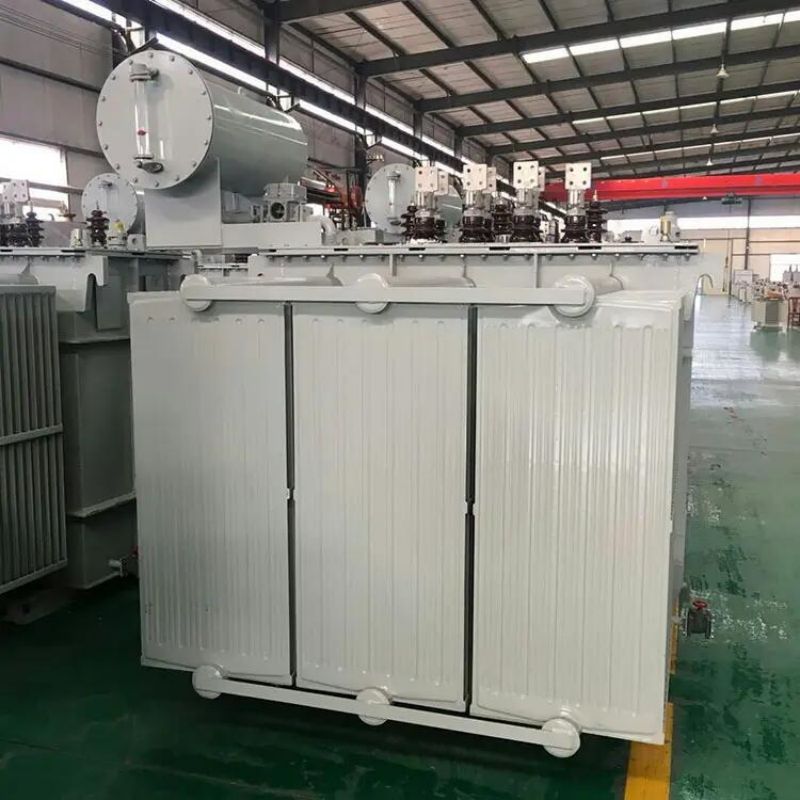

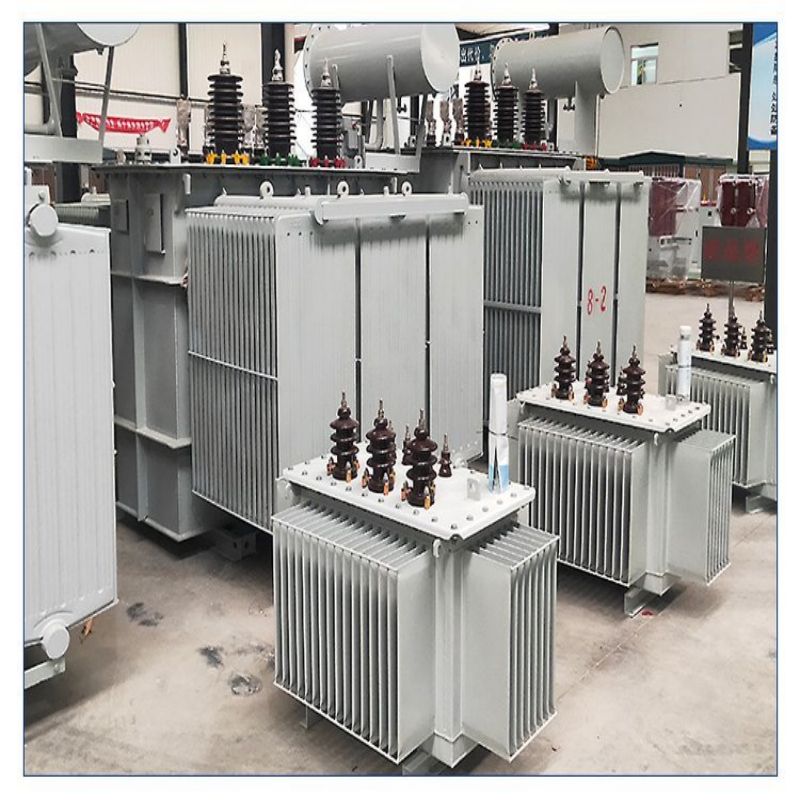

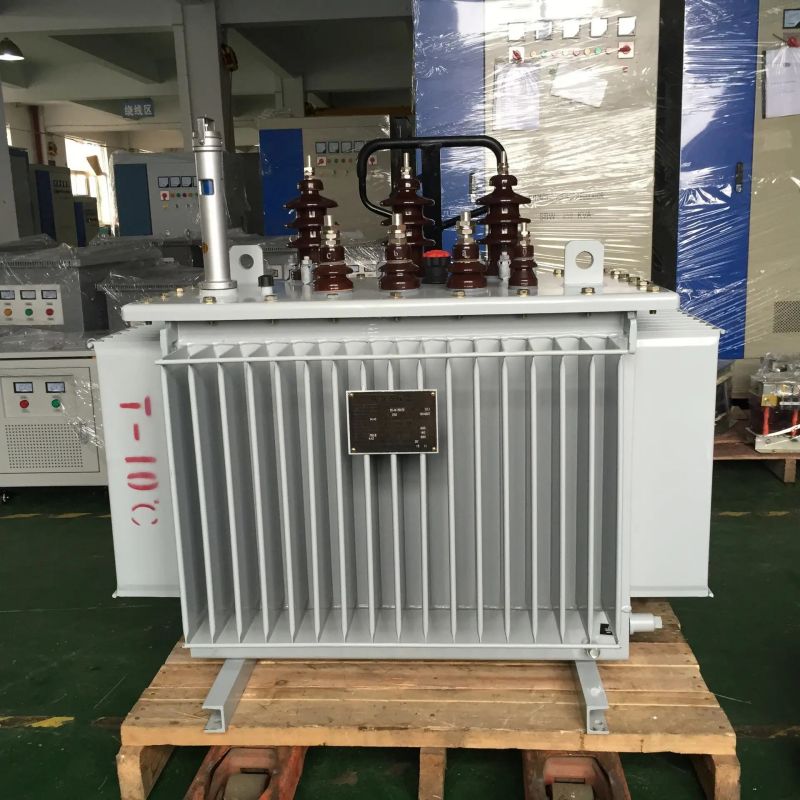

Oil transformer is distinguished by its remarkable energy efficiency, magnetic homogeneity, low no-load loss, low noise, slow temperature rise, maintenance-free feature and high efficiency.
The product is additionally valued as small sized, light weighted, heat diffusive, and, with the non-suspended corestructure, free from pollution.
S11 and S13 transformer is distinguished by its remarkable energy efficiency, magnetic homogeneity, low no-load loss, low noise, slow temperature rise, maintenance-free feature and high efficiency. The distribution transformer uses a newly-developed wound core which significantly enhances its energy efficiency. lts magnetic circuits are distributed homogeneously and dramatically reduce the no-load field current and no-load loss. As finished by good workmanship and with reliable performance assured by the three-layer laminated full inclined joint structure of wound core, the product is additionally valued as small sized, light weighted, heat diffusive, and, with the non-suspended corestructure, free from pollution. lt is available for residential quarters, highstreets, mining and industrial enterprises and rural areas for power supply and illumination.
Ambient Conditions
1. Altitude: < 3000 m
2. Maximum ambient temperature: +40°C
3. Maximum annual average temperature: +20°C
4. Maximum daily average temperature: 30°C
5.Minimum outdoor temperature:-45°C
| Use | Electronic |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | AUTOTRANSFORMER |
Other Attributes
| Place of Origin | Shandong, China |
| Brand Name | Jinshida |
| Model Number | SCB11-30~1600/,S11-30~1600 |
| Input Voltage | 10kv |
| Product name | Three Phase Transformer |
| Rated capacity | 400kVA |
| Frequency | 50Hz/60Hz |
| Standard | ISO9001: 2008 |
| Name | High Fequency Transformer |
| Rated voltage | 10KV |
| Warranty | 24 Months |
| Secondary voltage | 10 KV |
| Cooling Method | ONAN |
| Capacity | 400kva |
Selling Units | Single item |
Single package size | 770X570X930 cm |
Single gross weight | 410.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |

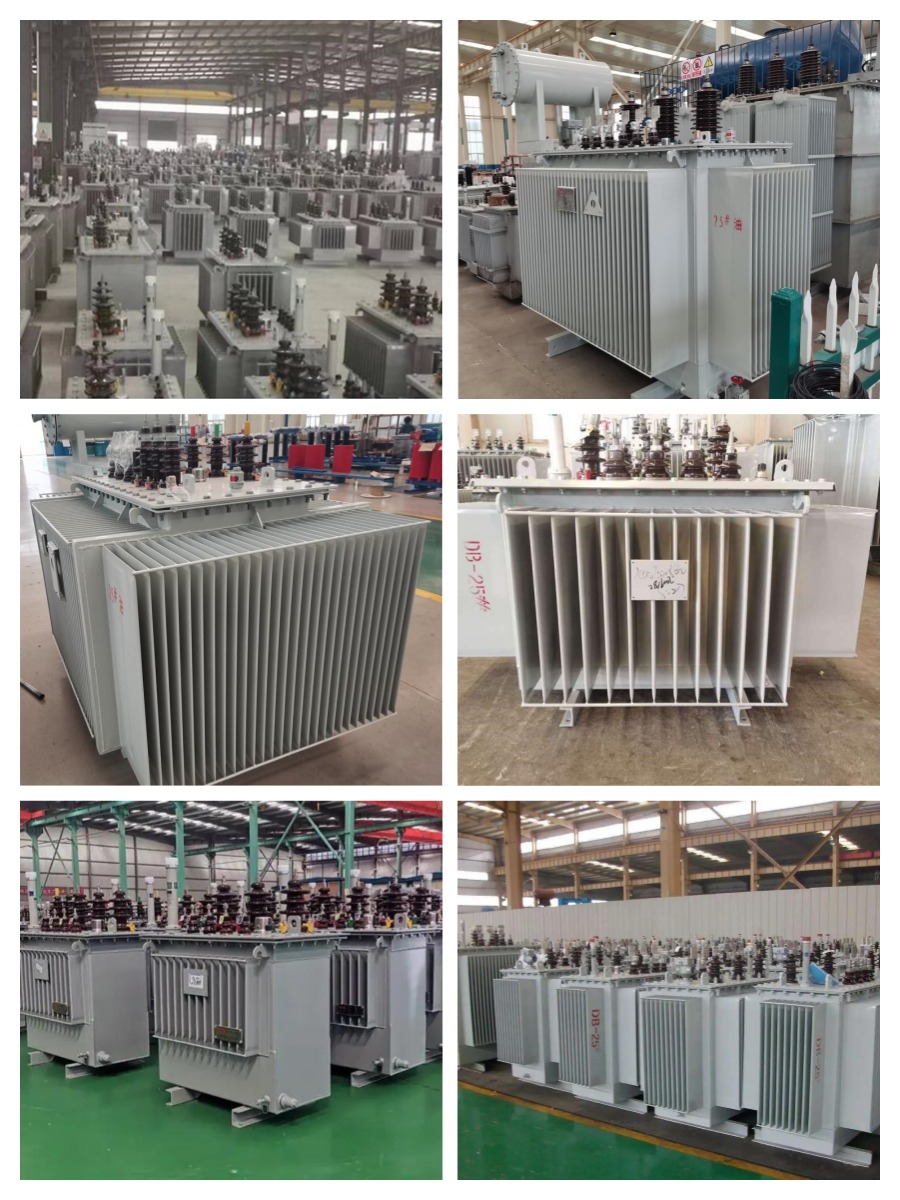

Customized Various Models

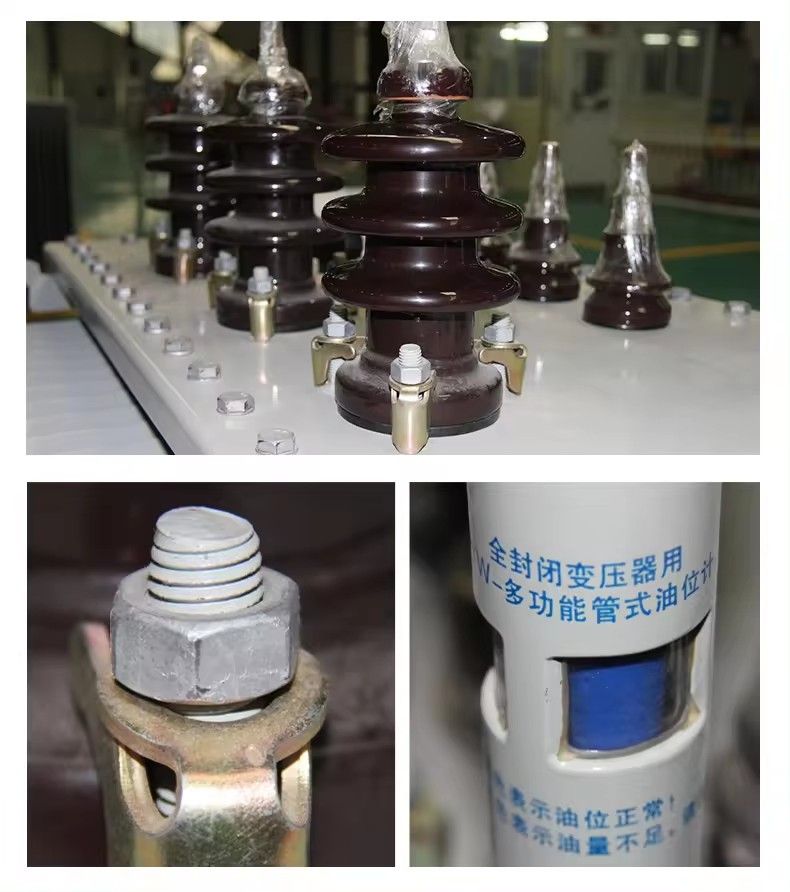

Pruduct Details
Certificate
Packing and Delivery
About Us
Shandong jinshida Transformer Co.Ltd. is the unique service provider of power transmission and distribution equipment in electrical industry since 2001,covering an area of 80000 m2 among 50000 m2 modern workshop with 600 unit advanced production equipment. By operating with industrial partners and contractors, jinshida Electric has an established international network in more than 40 counties. jinshida Electric is devoted to providesafe, high efficient and intelligent power transformation and distribution solution, focusing on R&D, manufacturing, sales and service.
Our Advantages
1.Quality Assurance
Jinshida follows the standard of customer demand, providing technical support and full quality control supervision to ensure that our products have excellent quality and reliability.
2.After-sales guarantee
Jinshida provides global customers with worry-free after-sales service, athree-year warranty period to allow customers to enjoy long-term stability of performance, to ensure that customers in the process of use can be satisfied with the experience.
3.Delivery time guarantee
Jinshida strictly adheres to the contractual delivery date to ensure that customers can receive the required products on time.
4.Honest co-operation
Jinshida adheres to the principle of integrity-based, and customers to establish mutual trust and mutual benefit of long-term cooperative relations, and jointly achieve a win-win situation.
FAQ
1. Are you trading company?
No. We're transformer manufacturer with production base of 20,000 m and we're located in Shandong province,it's close to the port.
2. After sales service-Response within 24H
We have dedicated after sales service team, any support regarding installation, on site commissioning,maintenance, please just contact us and we will response within 24H. For any concern or complaint, please send your advice to mail: sdjinshida@gmail.com
3.Quality guarantee 15+ testing procedure before delivery
We have complete and professional quality control system, and for each unique product before delivery, it will go through several strict test and make sure the required performance and stability of the machine.
4.On site/on line Production and Quality production supervision.
Customer own the product supervision right, and for each important process during the manufacturing and testing (or to be defined by customer's request), by means of on site check or on line check. Meanwhile, we also provide traceable records for check.
5.Packing&Transportation
Wooden pallet packing or or to be defined by customer
