Our oil-type transformers are essential for power supply systems, reducing network voltage to 230/400V bus voltage. They have a 2500kVA capacity, flexible installation options, and reliable performance.
8000KV·A oil-immersed transformer 8MVA
Oil-immersed transformers employ oil as the primary insulation method and oil as the cooling medium, with options including oil-immersed self-cooling, oil-immersed air-cooling, oil-immersed water cooling, and forced oil circulation. The transformer's primary components include the core, winding, oil tank, oil pillow, breather, explosion-proof pipe (pressure release valve), radiator, insulating bushing, tap changer, gas relay, thermometer, and oil purifier.
Oil can penetrate between the layers of silicon steel sheets of oil-immersed transformers due to long-term immersion, and because transformer oil is elastic and acts as a buffer, the noise of oil-immersed transformers is low. However, the voltage regulator switch is located inside the fuel tank. Whether the switch is in good contact during voltage regulation cannot be
Use | Power |
Phase | Three |
Coil Structure | TOROIDAL |
Coil Number | AUTOTRANSFORMER |
Other Attributes
Place of Origin | Shandong, China |
Brand Name | Jinshida |
Model Number | SCB11-30~1600/,S11-30~1600/ |
Input Voltage | 10kv |
Product name | |
Rated capacity | 400kVA |
Frequency | 50Hz/60Hz |
Standard | ISO9001: 2008 |
Name | High Fequency Transformer |
Rated voltage | 22KV |
Warranty | 24 Months |
Cooling Method | ONAN |
Capacity | 400kva |
Selling Units | Single item |
Single package size | 1260X820X1240 cm |
Single gross weight | 50.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |

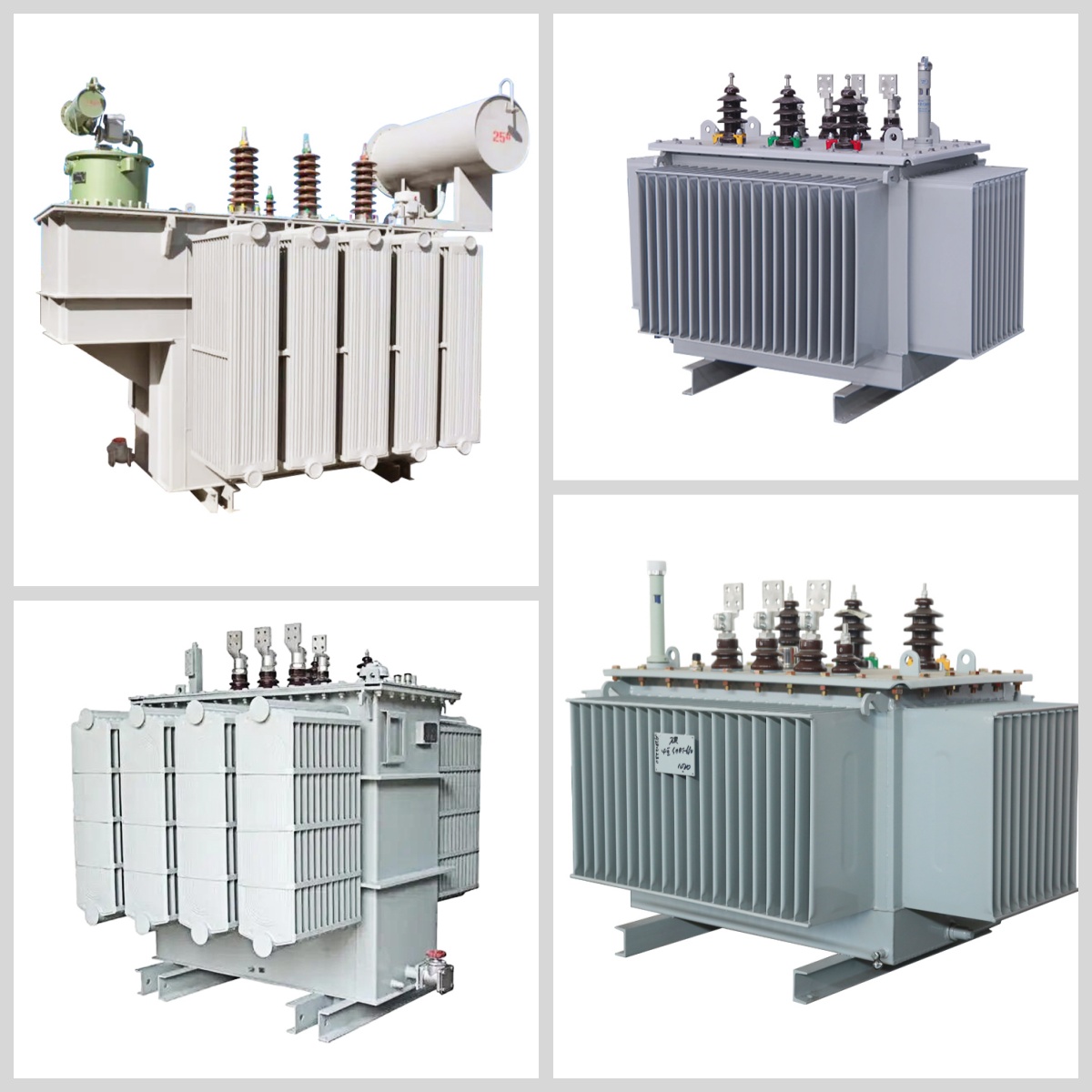

Customized Various Models
Product Process
Product Accessories
Application
Our products can be used in various industries such as power industry, urban construction, ports, etc.
Certificate
Packing and Delivery
