The oil-immersed transformer is a high-performance transformer with a three-dimensional wound core, tighter winding, and shortest magnetic circuits. Its design improves performance, reduces loss, noise, and harmonic components. It's suitable for urban and rural power grid transformation, industrial and mining enterprises, combined transformers, and prefabricated substation transformers.
The performances of model S9-M, S10-M, S11-M 10kv-35KV series full-sealed oil-immersed distribution transformes conform to Standards lEC lEEE. lts core is made of quality cold-rolled silicon sheet andis of a full-miter non-puncture structure and its coil is made of quality oxygen-free copper.
It uses an expansion type or corrugated steel radiator oil tank.
The transformer's height can be decreased because it doesn't require an oil conservator, and because the oil in the transformer doesn't contract with air, the aging process of the oil is delayed, extending the transformer's lifespan.
Model S10-M has a no-load loss 20% lower than Model S9-M, while Model S11-M has a no-load loss 30% lower than S9-M.
| Place of Origin | Shandong, China |
| Brand Name | Jinshida |
| Model Number | SCB11-30~1600/,S11-30~1600/,S11-30~20000/35 |
| Input Voltage | 10kv |
| Product name | Three Phase Transformer |
| Rated capacity | 400kVA |
| Frequency | 50Hz/60Hz |
| Standard | ISO9001: 2008 |
| Name | High Fequency Transformer |
| Rated voltage | 22KV |
| Warranty | 24 Months |
| Capacity | 400 KVa |
| Cooling Method | ONAN |
| Transformer type | S11 Oil-immersed Transformer |
Selling Units | Single item |
Single package size | 1260X820X1240 cm |
Single gross weight | 50.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbole | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |

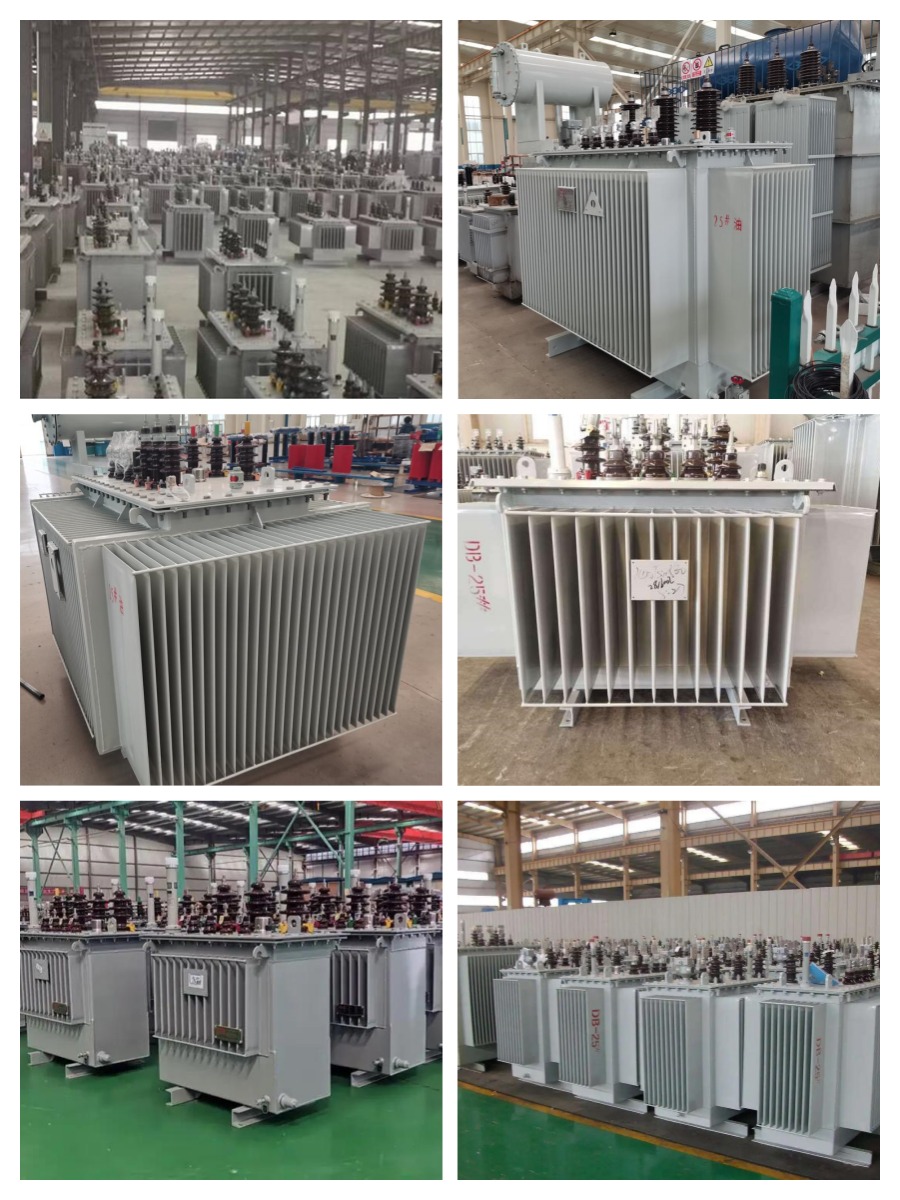

Customized Various Models
Pruduct Details
Certificate
Packing and Delivery
About Us
China's JinShiDa has 21 years of experience in international power projects, helpingmany customers around the world to complete power projects. For example, Canada.Mexico, Panama, Ecuador, Guatemala, Honduras, Chile, El Salvador, Australia, NewZealand, Spain, Belgium, Algeria, South Africa, Ethiopia, Myanmar, Kazakhstan, etc.Kingstar also has a very good after-sales installation service team abroad, so if youhave transformer needs, you can contact us.
