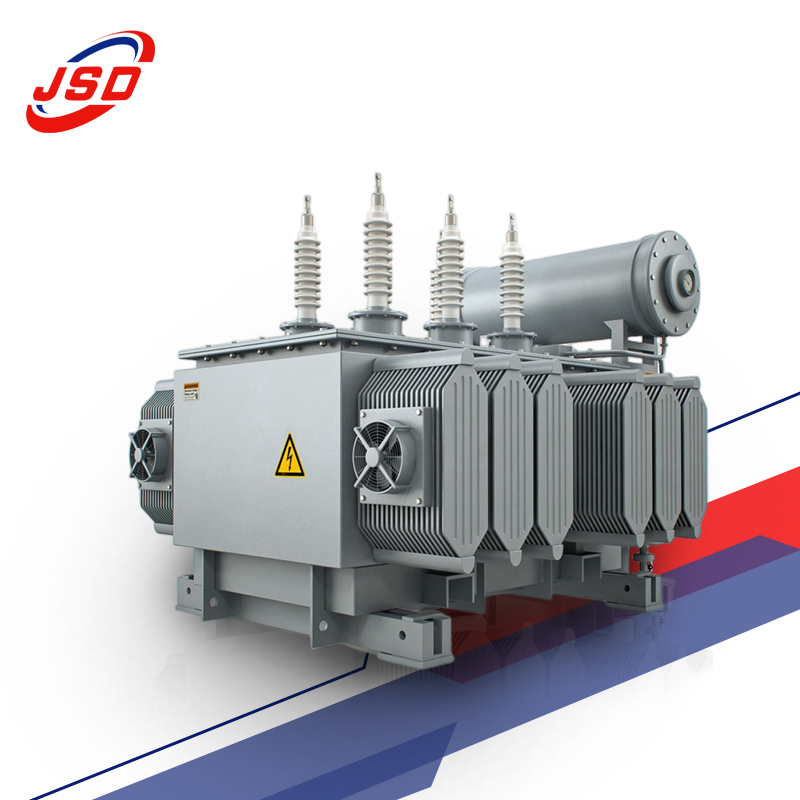

Our oil-type transformers are an essential component of power supply and distribution systems in industrial, mining, and civil buildings, efficiently converting 10(6)kV or 35kV network voltage to usable 230/400V bus voltage. These transformers, designed for AC 50(60) Hz, have a maximum rated capacity of 2500kVA and provide a variety of installation options, including indoor, outdoor, and pole-mounted configurations for capacities up to 315kVA. They perform consistently in a variety of environmental conditions and at altitudes up to 1000 meters.
Visit our factory store and take a free tour of the manufacturing facility. We accept bulk orders at competitive prices, and our facility maintains inventory for quick delivery. Our customer service team is available online 24/7, and we offer ODM/OEM services to meet your specific requirements. Request a quote.
| Use | Power |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | AUTOTRANSFORMER |
Other Attributes
| Place of Origin | Shandong, China |
| Brand Name | Jinshida |
| Model Number | SCB11-30~1600/,S11-30~1600 |
| Input Voltage | 10kv |
| Product name | Three Phase Transformer |
| Rated capacity | 400kVA |
| Frequency | 50Hz/60Hz |
| Standard | ISO9001: 2008 |
| Name | High Fequency Transformer |
| Rated voltage | 22KV |
| Warranty | 24 Months |
| Capacity | 400 KVa |
| Cooling Method | ONAN |
| Transformer | Oil immersed Transformer |
Selling Units | Single item |
Single package size | 1260X820X1240 cm |
Single gross weight | 50.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |

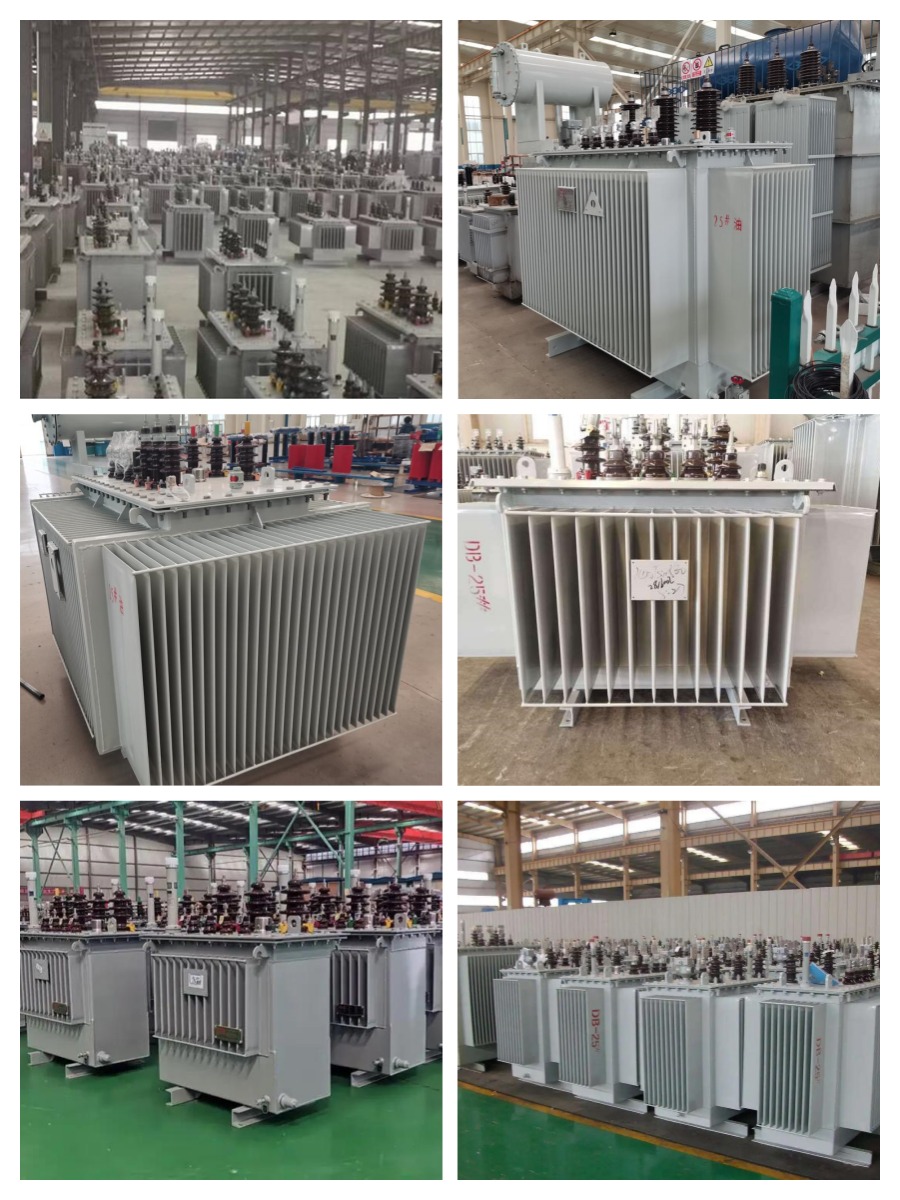

Customized Various Models
Product Process
Product Accessories
Application
Our products can be used in various industries such as power industry, urban construction, ports, etc.
Certificate
Packing and Delivery
Our Advantages
1.Quality Assurance
Jinshida follows the standard ofcustomer demand, providing technical support and full quality control supervision to ensure that our products have excellent quality and reliability.
2.After-sales guarantee
Jinshida provides global customers with worry-free after-sales service, athree-year warranty period to allow customers to enjoy long-term stability of performance, to ensure that customers in the process of use can be satisfied with the experience.
3.Delivery time guarantee
Jinshida strictly adheres to the contractual delivery date to ensure that customers can receive the required products on time.
FAQ
1.On site/on line Production and Quality production supervision. Customer own the product supervision right, and for each important process during the manufacturing andtesting lor to be defined by customer's request, by means of on site check or on line check. Meanwhile, we valso provide traceable records for check.
2.Packing&Transportation Wooden pallet packing or or to be defined by customer.
3.Difference Between Power Transformer and Distribution Transformer
(1)Transformer Size / insulation Level:Power transformers have a higher insulation level than distribution transformers
(2)lron Losses and Copper Losses:Power transformers lose energy as heat due to eddy current losses in their steel laminations and hysteresis losses in the core material. Distribution transformers don't have any iron part so they have lower iron losses than power transformers, They also lose energy due to hvsteresis losses in thecore material.
(3)Maximum Efficiency: Power transformers are generally less efficient than distribution transformers because their larger size and heavier currents.
