Oil-type transformer manufacturer, oil-immersed transformer, professional manufacturer with many years of technology and rich experience. Oil-immersed transformer has complete models, 6.3KV, 10KV, 11KV, 33KV, 35KV, 110KV all-copper transformer 30KVA-12500KVA lifespan Longer, complete qualifications, regular manufacturer, welcome to call for consultation.
Oil-type transformers are crucial in power supply and distribution systems for industrial and mining enterprises and civil buildings. They reduce network voltage to 230/400V bus voltage and are suitable for AC 50 Hz, three-phase transformers with a maximum capacity of 2500kVA. These transformers can be used indoors or outdoors with a capacity of 315kVA or below. The transformer should be installed on a pole, with ambient temperatures below 40℃, daily average temperatures below 30℃, annual average temperatures below 20℃, relative humidity below 90%, and the transformer's altitude below 1000m. If inconsistent with these conditions, quota adjustments should be made according to GB6450-86 provisions.
| Use | Power |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | AUTOTRANSFORMER |
Other Attributes
| Place of Origin | Shandong, China |
| Brand Name | Jinshida |
| Model Number | SCB11-30~1600/,S11-30~1600 |
| Input Voltage | 10kv |
| Product name | Three Phase Transformer |
| Rated capacity | 400kVA |
| Frequency | 50Hz/60Hz |
| Standard | ISO9001: 2008 |
| Name | High Fequency Transformer |
| Rated voltage | 22KV |
| Warranty | 24 Months |
| Capacity | 400 KVa |
| Cooling Method | ONAN |
Selling Units | Single item |
Single package size | 1260X820X1240 cm |
Single gross weight | 50.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbole | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |

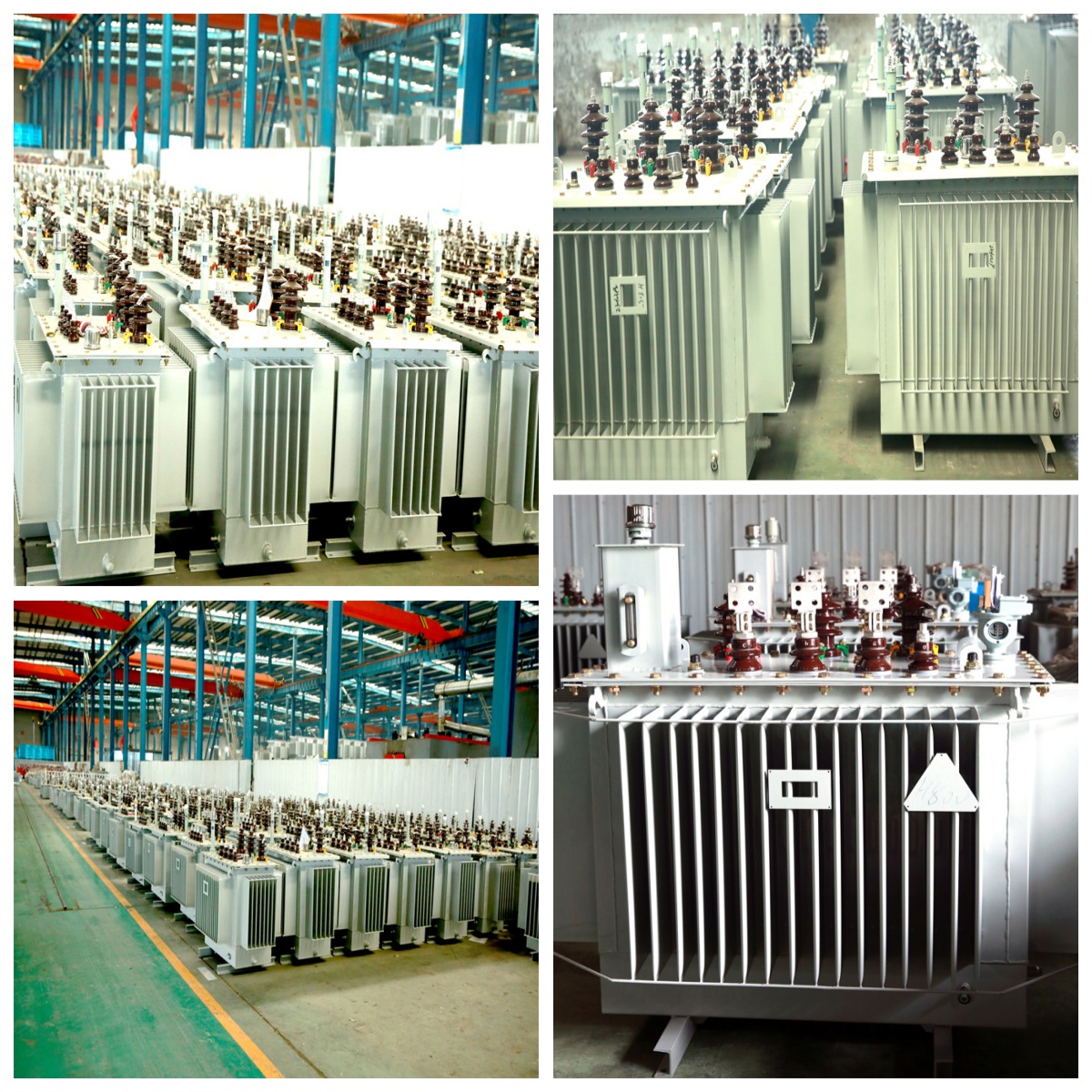

Customized Various Models
Product Process
Product Accessories
Application
Our products can be used in various industries such as power industry, urban construction, ports, etc.
Certificate
Packing and Delivery
About Us
Shandong Jinshida Transformer Co., Ltd. has been a one-of-a-kind service provider of power transmission and distribution equipment in the electrical industry since 2001, with an area of 80000 m2 divided among 50000 m2 of modern workshop space and 600 units of advanced production equipment. Jinshida Electric has established an international network in more than 40 countries through its collaboration with industrial partners and contractors. Jinshida Electric is dedicated to providing safe, efficient, and intelligent power transformation and distribution solutions, with a focus on R&D, manufacturing, sales, and services.
Our Advantages
1.Quality Assurance
Jinshida follows the standard ofcustomer demand, providing technical support and full quality control supervision to ensure that our products have excellent quality and reliability.
2.After-sales guarantee
Jinshida provides global customers with worry-free after-sales service, athree-year warranty period to allow customers to enjoy long-term stability of performance, to ensure that customers in the process of use can be satisfied with the experience.
3.Delivery time guarantee
Jinshida strictly adheres to the contractual delivery date to ensure that customers can receive the required products on time.
FAQ
1. On-site or online Production and quality management supervision. The customer owns the right to supervise the product, and each important process during manufacturing and testing will be defined by the customer's request, either through on-site or online checks. Meanwhile, we will provide traceable records for verification.
2.Packing&Transportation Wooden pallet packing, or as defined by the customer.
3. Lead time.
For standard products, allow about 15 working days for delivery.
Customized products typically require 20-30 working days for delivery.
Order quantity/customization requirements can also influence lead time.
4. Warranty and payment terms.
Minimum warranty period of two years.
For the first order, we normally accept T/T at 30%+70%. Regular customer payment terms will be negotiated by both parties.
