1. Wide Application Range
2. Versatile Configuration
3. Flexible Installation
4. Environmental Adaptability
5. High Altitude Suitability
6. Standards Compliance

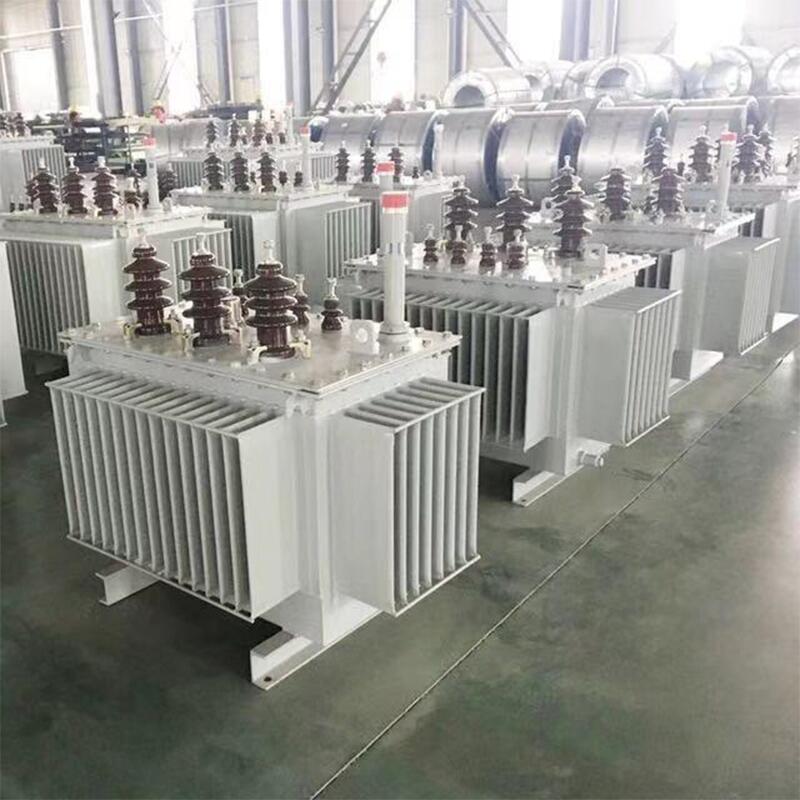

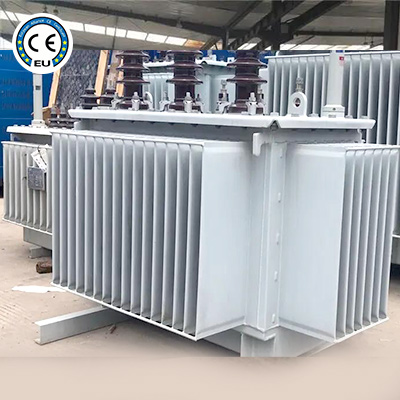

A power transformer is a static electrical device that is used to convert a certain value of AC voltage (current) into another or several different values of voltage (current) with the same frequency.
A stationary device with two or more windings that, in order to transmit electrical energy, converts the AC voltage and current of one system into the voltage and current of another system through electromagnetic induction at the same frequency. Usually the values of these currents and voltages are different.
| Use | Electronic |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | AUTOTRANSFORMER |
Other Attributes
| Place of Origin | Shandong, China |
| Brand Name | Jinshida |
| Model Number | SCB11-30~1600/,S11-30~1600 |
| Input Voltage | 10kv |
| Product name | Three Phase Transformer |
| Rated capacity | 400kVA |
| Frequency | 50Hz/60Hz |
| Standard | ISO9001: 2008 |
| Name | High Fequency Transformer |
| Rated voltage | 10KV |
| Warranty | 24 Months |
| Secondary voltage | 10 KV |
| Cooling Method | ONAN |
| Capacity | 400kva |
Selling Units | Single item |
Single package size | 770X570X930 cm |
Single gross weight | 410.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |
Customized Various Models
