1. Low Loss: High energy efficiency, cost-effective operation, and maintenance-free.
2. Structure is optimized to withstand short circuits and lightning strikes.
3. Protection features include flame retardancy, moisture resistance, anti-fouling, and low noise.
4. Wide Application: Suitable for multi-story buildings, airports, stations, ports, power plants, and distribution centers, particularly in environments with stringent fire protection requirements.
Our oil-type transformers are an essential component of power supply and distribution systems in industrial, mining, and civil buildings, efficiently converting 10(6)kV or 35kV network voltage to usable 230/400V bus voltage. These transformers, designed for AC 50(60) Hz, have a maximum rated capacity of 2500kVA and provide a variety of installation options, including indoor, outdoor, and pole-mounted configurations for capacities up to 315kVA. They perform consistently in a variety of environmental conditions and at altitudes up to 1000 meters.
Visit our factory store and take a free tour of the manufacturing facility. We accept bulk orders at competitive prices, and our facility maintains inventory for quick delivery. Our customer service team is available online 24/7, and we offer ODM/OEM services to meet your specific requirements.
Distribution Transformer | Oil Transformer | 1000KVA | 2000KVA | 3150KVA
Installation requirements
1. The foundation track of the transformer should be level, and the oil pillow side should have a slope of 1-1.5%.
2. The transformer should be reinforced.
3. The primary and secondary leads of the transformer should not stress the bushing.
4. The transformer shell is firmly connected to the neutral point and grounding device to form a trinity of 5. 800KVA (gas relay installed).
It adopts radiator oil tank of corrugated shteet type or expansion type.
As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract with air,the oil ageing is retarded, thus prolonging the service life of transformer.
The no-load loss of Model S10-M is 20% lower thanthat of Model S9-M,and S11-M is 30% lower than S9-M.
Use | Power |
Phase | Single |
Coil Structure | TOROIDAL |
Coil Number | AUTOTRANSFORMER |
Other Attributes
Place of Origin | Shandong, China |
Brand Name | Jinshida |
Model Number | SCB11-30~1600/,S11-30~1600/,S11-30~20000/35 |
Product name | Oil Immersed Power Transformer |
Frequency | 50Hz/60Hz |
Rated capacity | 400kVA |
Standard | ISO9001: 2008 |
Name | Oil Immersed Distribusion Transformer |
Rated voltage | 22KV |
Warranty | 24 Months |
Cooling Method | ONAN |
Capacity | 400kva |
Transformer type |
Selling Units | Single item |
Single package size | 1260X820X1240 cm |
Single gross weight | 50.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |

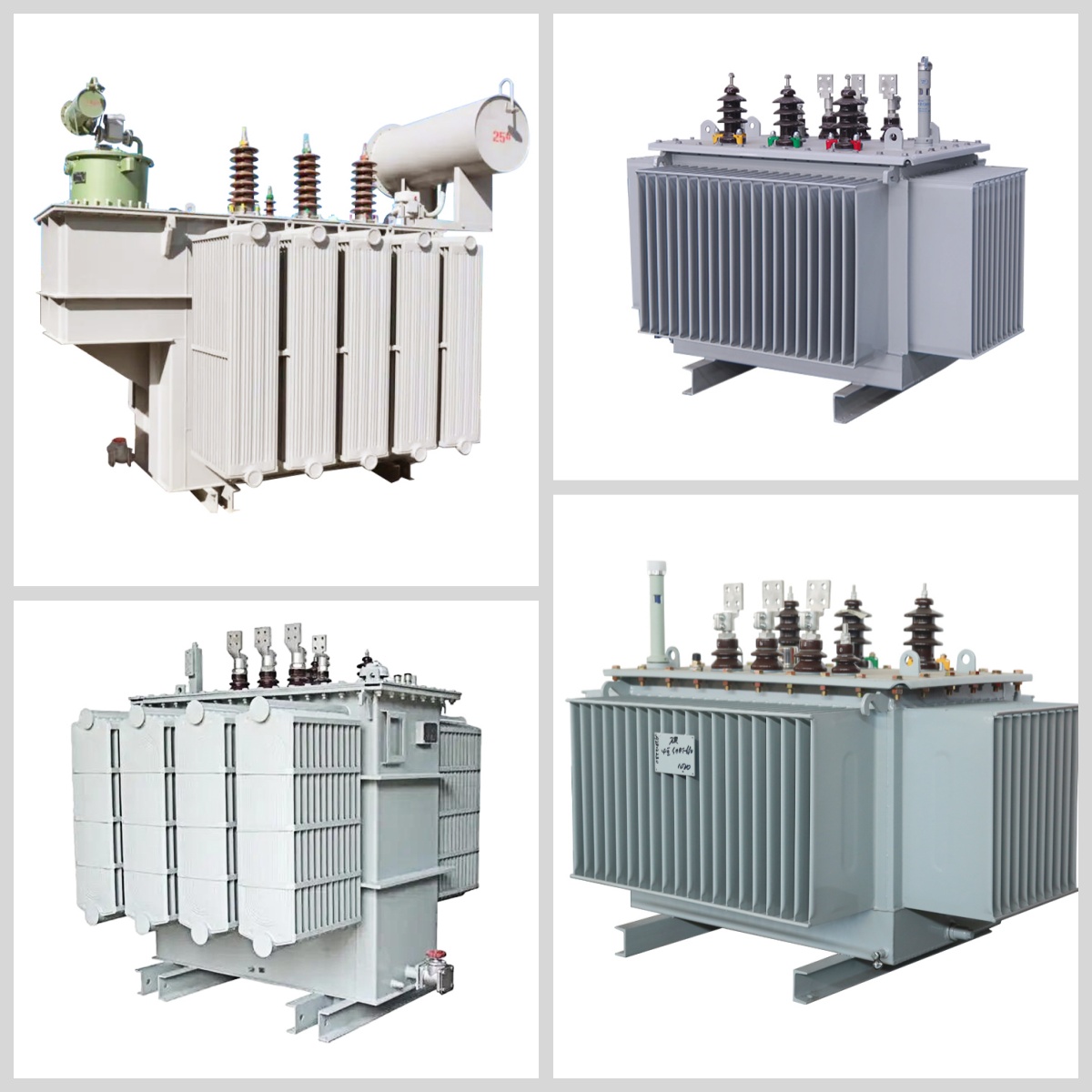

Customized Various Models
Product Process
Application
Our products can be used in the power industry, mining industry, aviation industry, petroleum industry, bridge engineering, etc.
Certificate
Packing and Delivery
About Us
JinShiDa, a Chinese company, has 21 years of experience in international power projects and has assisted many customers around the world in completing them. For example, consider Canada.Mexico, Panama, Ecuador, Guatemala, Honduras, Chile, El Salvador, Australia, New Zealand, Spain, Belgium, Algeria, South Africa, Ethiopia, Myanmar, Kazakhstan, and more.Kingstar also has a very good after-sales installation service team abroad, so please contact us if you have any transformer needs.
Trial run
1. The transformer can only be put into trial operation after all test items have passed.
2. A comprehensive inspection of the transformer should be carried out before trial operation.
3. The transformer undergoes 5 impact tests (closing test).
4. The no-load running time is related to the transformer capacity and is generally not less than 24 hours.
5. After the no-load running time is completed, the transformer is reloaded.
FAQ
1. Leading time
For standard product, approximately 15 working days before delivery.
For customized product, approximately 20~30 working days before delivery.
Order quantity/customization requirements can also affect the leading time.
2.Warranty/ Payment terms
2 years of warranty at least.For the first order we normally accept T/T, 30%+70%. Regular customer payment terms to be negotiated by both parties.
