Distribution power transformers convert AC voltage into different types with the same frequency. They generate alternating magnetic flux and AC electromotive force, with rated capacity being the main parameter. Amorphous alloy core distribution transformers offer low no-load loss, but design considerations must consider core properties.
Distribution power transformer is a kind of static electrical equipment, which is used to convert a certain value of AC voltage (current) into another type or several different values of voltage (current) with the same frequency. When alternating current is supplied to the primary winding, alternating magnetic flux is generated. The alternating magnetic flux induces AC electromotive force in the secondary winding through the magnetic conduction of the iron core. The level of the secondary induced electromotive force is related to the number of turns of the primary and secondary windings, that is, the voltage is proportional to the number of turns. The main function is to transmit electrical energy, therefore, the rated capacity is its main parameter. Rated capacity is a common value that expresses power. It represents the size of transmitted electric energy, expressed in kVA or MVA. When the rated voltage is applied to the transformer, it is used to determine the rated current that does not exceed the temperature rise limit under specified conditions. The more energy-saving power transformer is the amorphous alloy core distribution transformer. Its biggest advantage is that the no-load loss value is extremely low. Whether the no-load loss value can ultimately be ensured is the core issue to be considered in the entire design process. When arranging the product structure, in addition to considering that the amorphous alloy core itself is not affected by external forces, the characteristic parameters of the amorphous alloy must be accurately and reasonably selected during calculations.
Our Advantages
1.Reliable Power Transformer Since 2001, Top 1 transformer manufacturer in nuclear power industry
2. High R&D capacity to support customerized design
3. Complete Quality Assurance System
4. Full set of test report
5. localized technical backup and aftersales
Sample Room
Product Process
Product Accessories
Product Parameters
12400 |
15300 |
Packing and Shipping
Certificate
FAQ
1.On site/on line Production and Quality production supervision.Customer own the product supervision right, and for each important process during the manufacturing and testing (or to be defined by customer's request), by means of on site check or on line check. Meanwhile, we valso provide traceable records for check.

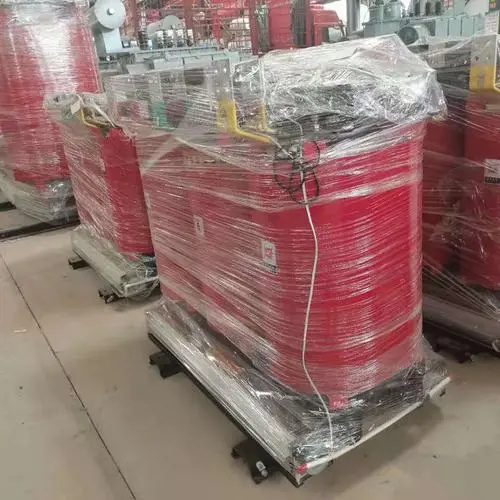

2.Packing&Transportation
Wooden pallet packing or or to be defined by customer.
