1. Wide Application: Suitable for multi-story buildings, airports, stations, ports, power plants, and distribution centers, particularly in areas with stringent fire safety standards.
2. Customization Services: Available with IP20 and IP23 certified housings, customisable materials like steel, stainless steel, and aluminum alloys, and a variety of surface treatments.
3. Real-Time Monitoring: For user convenience and operational stability, the low-voltage side is equipped with a temperature control display and a load recorder.

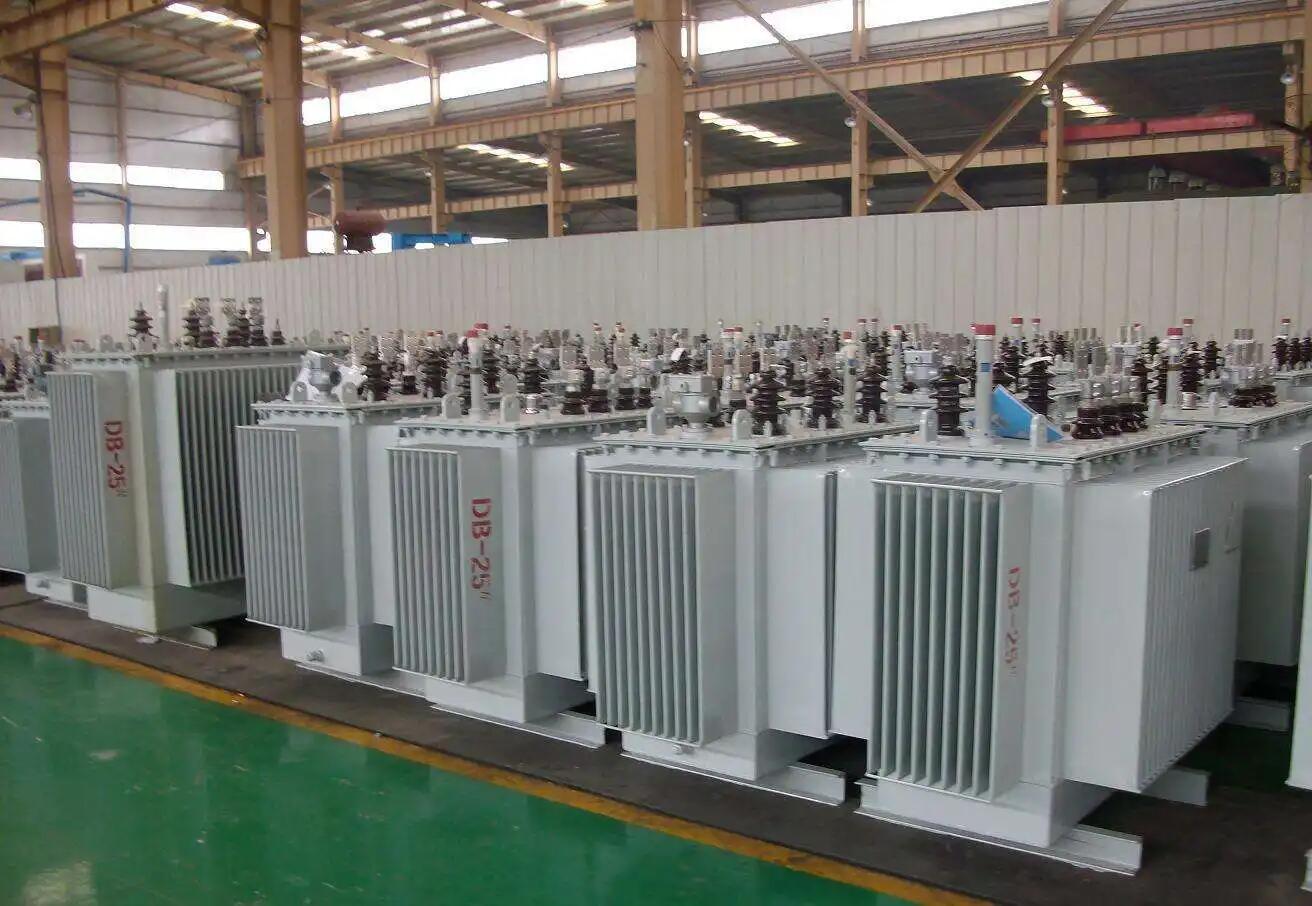

power transformer

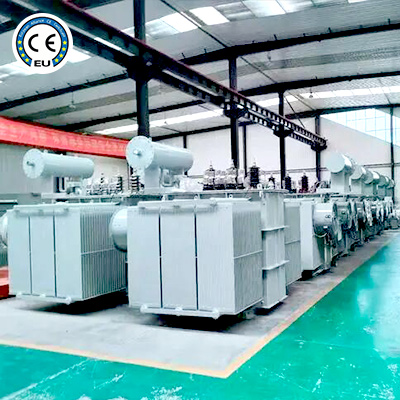

The system now operates with the following products: 1150KV, 1200MV·A, 735~765KV, 800MV·A, 400~500KV, 3-phase 750MV·A or single-phase 550MV·A, 220KV, 3-phase 1300MV·A power transformer, and DC transmission ±500KV, 400MV·A converter transformers. Power transformers are primarily oil-immersed, with two product structures: core type and shell type. Core type manufacturing accounts for 95%, whereas shell type accounts for just 5%. There is no clear benefit between the core and shell types, but the core type procedure is relatively easy, thus it is used by most businesses, but the shell type structure and process are more complex, and only conventional manufacturers employ them. The shell type is ideal for high voltage and huge capacities. It has benefits in insulation and mechanics.
Use | Power |
Phase | Three |
Coil Structure | TOROIDAL |
Coil Number | AUTOTRANSFORMER |
Other Attributes
Place of Origin | Shandong, China |
Brand Name | Jinshida |
Model Number | SCB11-30~1600/,S11-30~1600/ |
Input Voltage | 10kv |
Product name | |
Rated capacity | 400kVA |
Frequency | 50Hz/60Hz |
Standard | ISO9001: 2008 |
Name | High Fequency Transformer |
Rated voltage | 22KV |
Warranty | 24 Months |
Cooling Method | ONAN |
Capacity | 400kva |
Selling Units | Single item |
Single package size | 1260X820X1240 cm |
Single gross weight | 50.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |
Customized Various Models
Product Process
Product Accessories
Application
Our products can be used in various industries such as power industry, urban construction, ports, etc.
Certificate
Packing and Delivery
