1. Low Loss
2. Optimized Structure
3. Protection Features
4. Wide Application

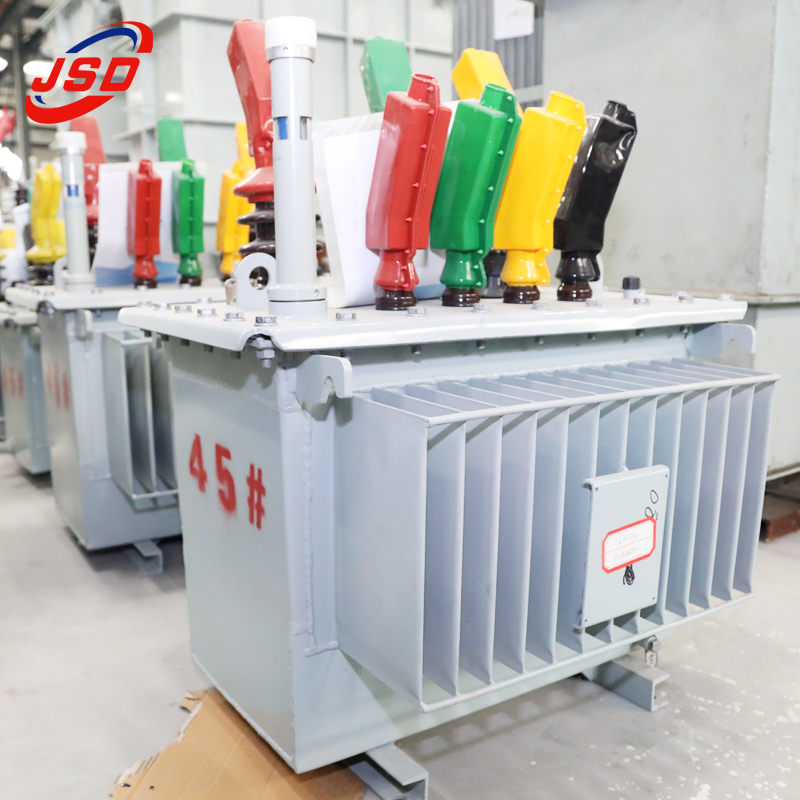

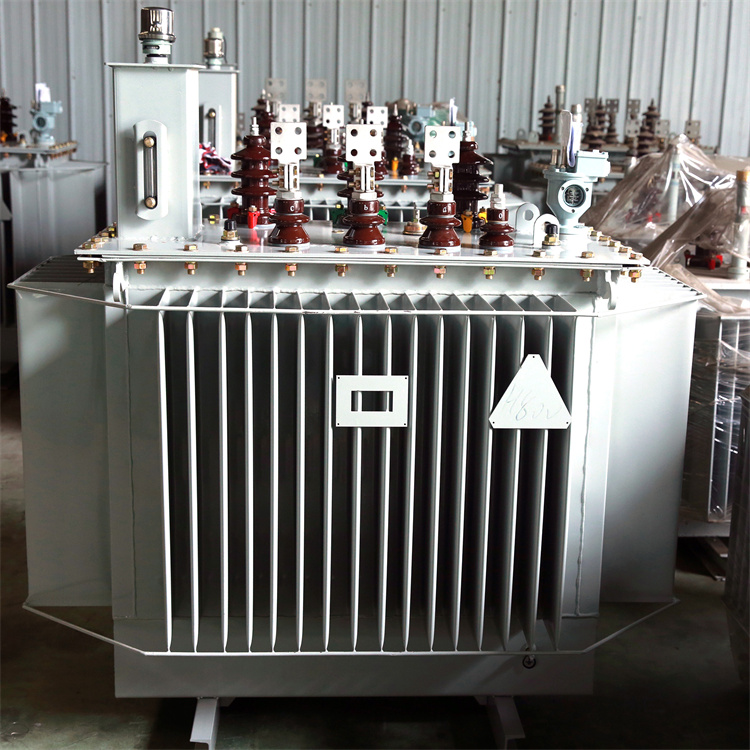

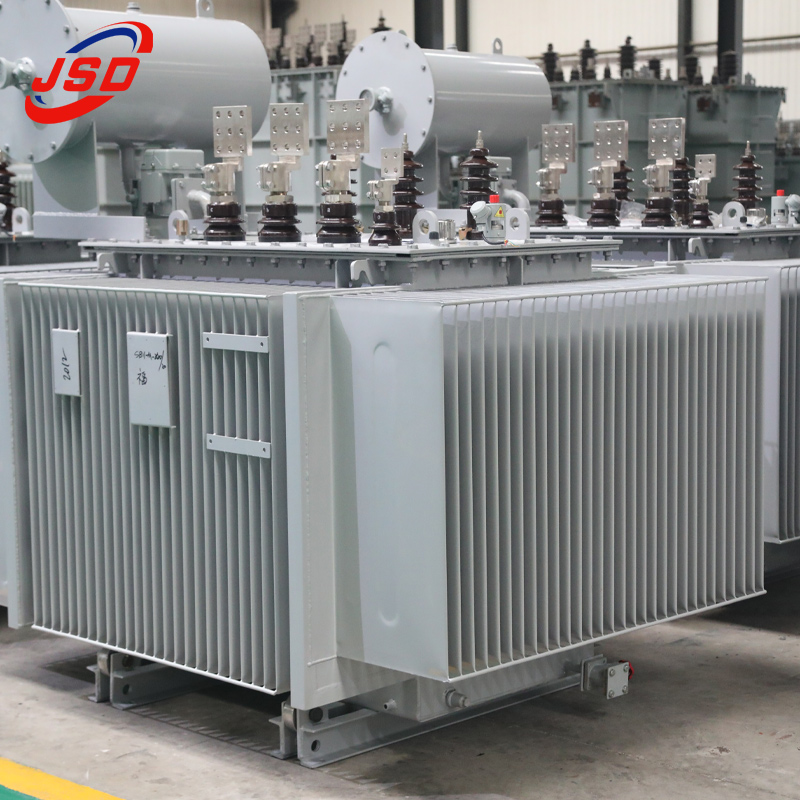

Three-phase oil transformer | 10KV | 11KV | 33KVOil transformer
An oil-type test transformer is a transformer used to electrically test high-voltage equipment in power systems. It has two major windings: a high-voltage winding linked to an external high-voltage source, and a low-voltage winding attached to the item being tested. The transformer employs oil as an insulating medium, which provides excellent electrical and insulation qualities. When activated, it transforms the input high-voltage signal to a lower output voltage.
| Use | Power |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | AUTOTRANSFORMER |
Other Attributes
| Place of Origin | Shandong, China |
| Brand Name | Jinshida |
| Model Number | SCB11-30~1600/,S11-30~1600 |
| Input Voltage | 10kv |
| Product name | Three Phase Transformer |
| Rated capacity | 400kVA |
| Frequency | 50Hz/60Hz |
| Standard | ISO9001: 2008 |
| Name | High Fequency Transformer |
| Rated voltage | 22KV |
| Warranty | 24 Months |
| Secondary voltage | 0.4 KV |
| Cooling Method | ONAN |
Selling Units | Single item |
Single package size | 1260X820X1240 cm |
Single gross weight | 50.000 kg |
Product Paramenters
10 Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
30KVA | 6.3KV 15KV 22KV 25KV 33KV 10KV 11KV 20KV 35KV
| 0.4 | Ydn11 Yyno | 570 | 4300 | 0.4 |
50KVA | ||||||
80KVA | 680 | 5140 | 0.45 | |||
100KVA | ||||||
125KVA | 810 | 30800 | 0.4 | |||
160KVA | ||||||
200KVA | 980 | 7500 | 0.4 | |||
250KVA | ||||||
315KVA | 1150 | 10300 | 0.35 | |||
400KVA | ||||||
500KVA | 1360 | 12000 | 0.3 | |||
630KVA | ||||||
800KVA | 1640 | 145000 | 0.6 | |||
1000KVA | ||||||
1250KAV | 1950 | 19140 | 0.6 | |||
1600KVA | ||||||
2000KVA | 2340 | 22220 | 0.5 | |||
2500KAV |
Customized Various Models
Product Process

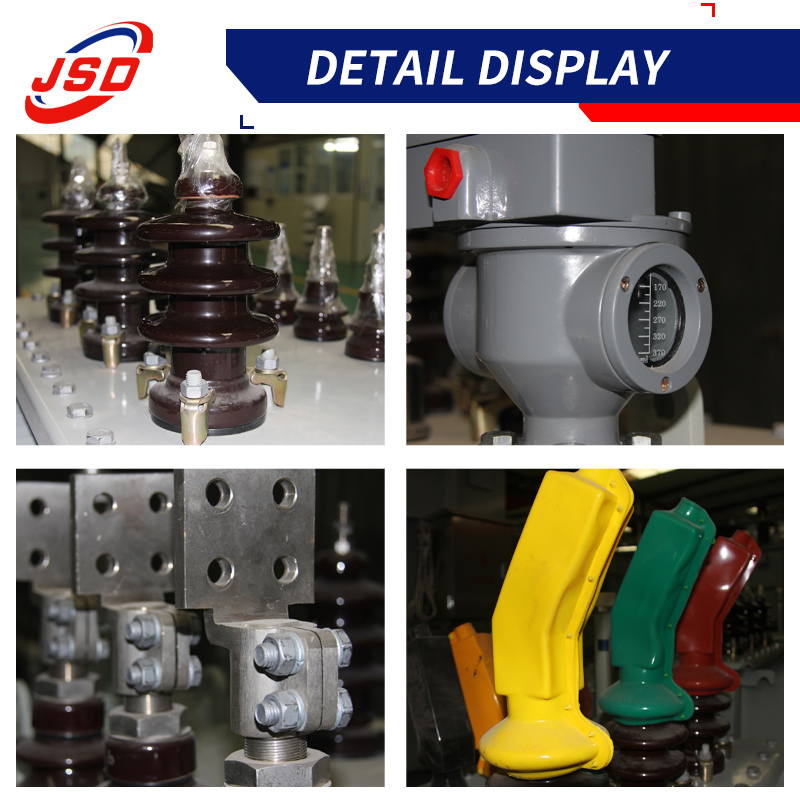

Product Accessories
Application
Our products can be used in various industries such as power industry, urban construction, ports, etc.
Certificate
Packing and Delivery
Rated Voltage: up to 40.5kV
Rated Capacity: 50kVA up to 26.5MVAX 33kV class and below Amorphous Alloy Dry Type TransformerX33kV class and below Substation Transformer 33kV class and below Oil-immersed Transformer 220kV class and below Oil-immersed Transformer Covering different application: power grid, solar power plant, wind power plant, Hydro powerplant, nuclear power plant, railway, telecommunication, infrastructure, real estate.
