1. Ensures good thermal circulation of transformer oil through design and manufacturing, preventing sludge buildup and maintaining heat dissipation effectiveness.
2. Uses high-quality insulation materials that can withstand high temperatures, reducing the risk of insulation material burning and falling off.
3. Prevents insulation short circuits and poor thermal circulation caused by sludge accumulation, thereby extending the transformer's service life.
4. Features a well-designed three-phase load current monitoring system to ensure load current consistency, reducing the occurrence of high voltage breakdown and burnout accidents.
How to make full use of the transformer's installed capacity without damaging the normal service life of the transformer should be the main basis for selecting the transformer capacity.
The recommended method is to select the distribution transformer capacity based on the expected maximum load Smax and typical daily load curve, and in accordance with the International Electrotechnical Commission (IEC) Standard (1972) Oil-immersed Transformer and Load Guidelines. This standard has been adopted by China. The advantage of this method is that it takes into account the normal overload capacity of the transformer and makes full use of the transformer setting capacity without shortening the life of the transformer. This reduces investment and improves the operating conditions of the distribution network, and its economic benefits are also significant.
According to the computer program compiled by this method, the distribution transformer capacity selection table corresponding to six typical daily load curves has been calculated. The load reference type of the load curve is.
I: For watering the ground and wheat fields;
II: Village business; lighting, field and yard use;
III: For work; lighting, ground watering, yard use;
IV: For local and county industrial use;
V: Village comprehensive load with industrial load;
VI: Urban industrial comprehensive load.

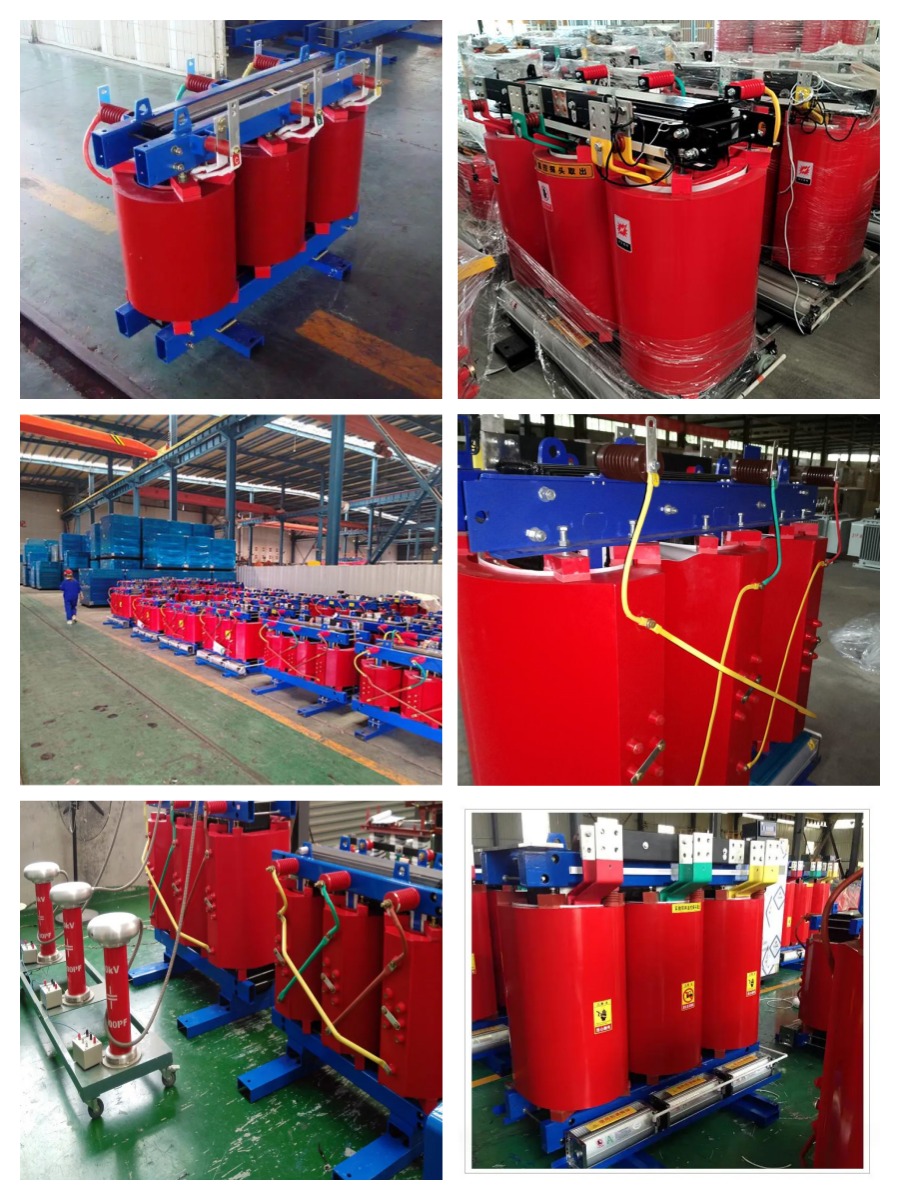

Sample Room
Product Process
Product Accessories
Product Parameters
| 12400 |
| 15300 |
Packing and Shipping
Certificate
FAQ
1.Packing&Transportation
Wooden pallet packing or or to be defined by customer.
2.Warranty/ Payment terms
2 years of warranty at least.For the first order we normally accept T/T, 30%+70%. Regular customer payment terms to be negotiated by both parties.
