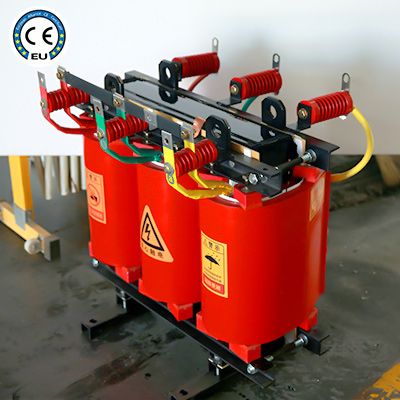

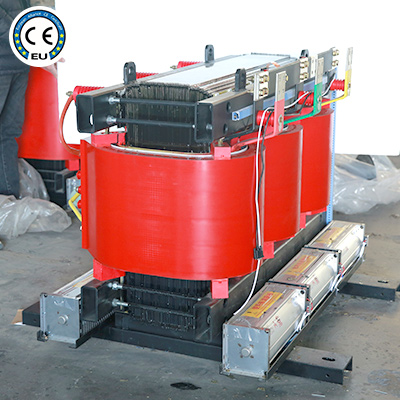

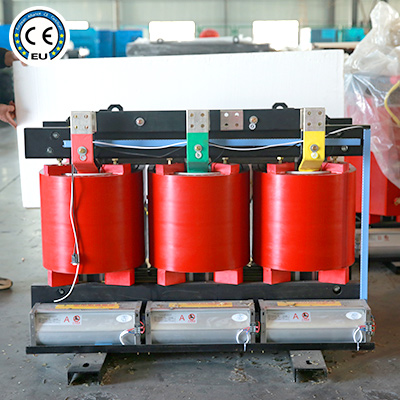

dry type transformer|10KV 11KV 33KV 35KVdry type transformer manufacturer
Dry-type distribution transformers are widely used in local lighting, high-rise buildings, airports, terminals, CNC machinery and equipment, etc. Simply put, dry-type transformers refer to transformers whose core and windings are not immersed in insulating oil.
Cooling methods are divided into natural air cooling (AN) and forced air cooling (AF). When naturally air-cooled, the transformer can operate continuously for a long time at rated capacity. When forced air cooling is used, the output capacity of the transformer can be increased by 50%.
dry type transformer|10KV 11KV 33KV 35KVdry type transformer manufacturer
Dry-type distribution transformers are widely used in local lighting, high-rise buildings, airports, terminals, CNC machinery and equipment, etc. Simply put, dry-type transformers refer to transformers whose core and windings are not immersed in insulating oil.
Cooling methods are divided into natural air cooling (AN) and forced air cooling (AF). When naturally air-cooled, the transformer can operate continuously for a long time at rated capacity. When forced air cooling is used, the output capacity of the transformer can be increased by 50%.
Why Choose Us
Company Profile
Company Profile
Details Images
Main Technical Parameters for 10KV SC ( B ) -30-2500TYPE | |||||||||
Rated Power ( kva ) | Higl Voltage ( kv ) | H. V. Tap range | LOW Voltage ( kv ) | Connection symbol | Short Circuit Impendence (%) | No-load loss ( KW ) | On-load loss ( KW ) | ||
sc(B)9 | sc(B)10 | sc(B)9 | sc(B)9 | ||||||
16 | 6 6.3 10 10.5 11 15 | ±5% ±2x2.5% | 0.4 | Dyn11 | 6 | 220 | 190 | 750 | 710 |
50 | 310 | 270 | 1060 | 1000 | |||||
80 | 420 | 370 | 1460 | 1380 | |||||
100 | 450 | 400 | 1670 | 1570 | |||||
125 | 530 | 470 | 1960 | 1850 | |||||
160 | 610 | 540 | 2250 | 2130 | |||||
200 | 700 | 620 | 2680 | 2530 | |||||
250 | 810 | 720 | 2920 | 2760 | |||||
300 | 990 | 880 | 3670 | 3470 | |||||
400 | 1100 | 980 | 4220 | 3990 | |||||
500 | 1310 | 1160 | 5170 | 4880 | |||||
630 | 1510 | 1340 | 6220 | 5880 | |||||
630 | 1460 | 1300 | 6310 | 5960 | |||||
800 | 1710 | 1520 | 7360 | 6960 | |||||
1000 | 1990 | 1770 | 8610 | 8130 | |||||
1250 | 2350 | 2090 | 10260 | 9690 | |||||
1600 | 2760 | 2450 | 12400 | 11730 | |||||
2000 | 3400 | 3050 | 15300 | 14450 | |||||
2500 | 4000 | 3600 | 18180 | 17170 | |||||
Product Paramenters
