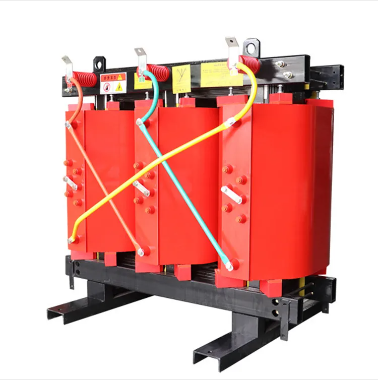

Jinshida Dry-type Transformer Factory specializes in producing: SCB10, SCB11, SCB12, SCB13, SCBH15, SGB10, SGRB11 dry-type transformers and various types of dry-type power transformers, with one-year replacement guarantee and three-year warranty. It is a professional dry-type transformer manufacturer
Jinshida Dry-type Transformer Factory specializes in producing: SCB10, SCB11, SCB12, SCB13, SCBH15, SGB10, SGRB11 dry-type transformers and various types of dry-type power transformers, with one-year replacement guarantee and three-year warranty. It is a professional dry-type transformer manufacturer
Why Choose Us
Company Profile
Company Profile

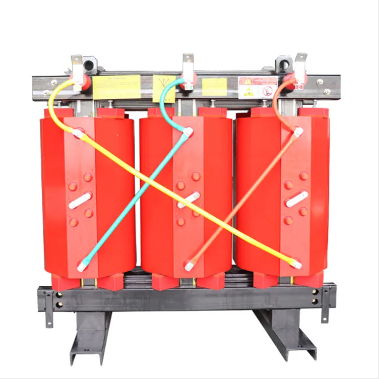

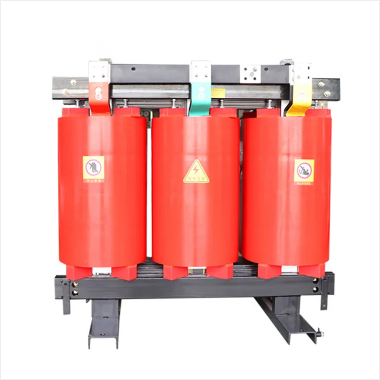

Details Images
Main Technical Parameters for 10KV SC ( B ) -30-2500TYPE | |||||||||
Rated Power ( kva ) | Higl Voltage ( kv ) | H. V. Tap range | LOW Voltage ( kv ) | Connection symbol | Short Circuit Impendence (%) | No-load loss ( KW ) | On-load loss ( KW ) | ||
sc(B)9 | sc(B)10 | sc(B)9 | sc(B)9 | ||||||
16 | 6 6.3 10 10.5 11 15 | ±5% ±2x2.5% | 0.4 | Dyn11 | 6 | 220 | 190 | 750 | 710 |
50 | 310 | 270 | 1060 | 1000 | |||||
80 | 420 | 370 | 1460 | 1380 | |||||
100 | 450 | 400 | 1670 | 1570 | |||||
125 | 530 | 470 | 1960 | 1850 | |||||
160 | 610 | 540 | 2250 | 2130 | |||||
200 | 700 | 620 | 2680 | 2530 | |||||
250 | 810 | 720 | 2920 | 2760 | |||||
300 | 990 | 880 | 3670 | 3470 | |||||
400 | 1100 | 980 | 4220 | 3990 | |||||
500 | 1310 | 1160 | 5170 | 4880 | |||||
630 | 1510 | 1340 | 6220 | 5880 | |||||
630 | 1460 | 1300 | 6310 | 5960 | |||||
800 | 1710 | 1520 | 7360 | 6960 | |||||
1000 | 1990 | 1770 | 8610 | 8130 | |||||
1250 | 2350 | 2090 | 10260 | 9690 | |||||
1600 | 2760 | 2450 | 12400 | 11730 | |||||
2000 | 3400 | 3050 | 15300 | 14450 | |||||
2500 | 4000 | 3600 | 18180 | 17170 | |||||
Product Paramenters
