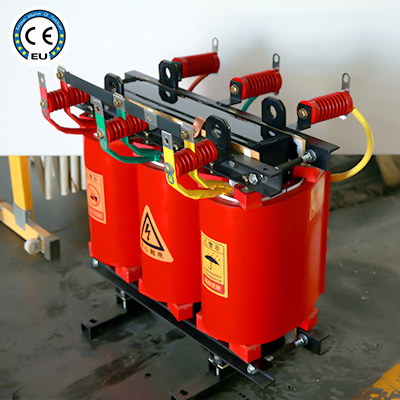

33KV Dry Type Distribution Transformer

1. Advanced Cooling Options

2. Optimal Performance

3. Innovative Technology

4. High Reliability


Product Details

This product has flexible uses for a wide range of applications, such as CNC machinery, high-rise buildings, airports, and municipal lights. It has an oil-free design, cutting-edge cooling options, top performance, cutting-edge technology, high dependability, compliance with environmental regulations, more capacity, multifunctional features, and an eco-friendly appearance. With 50% forced air cooling and 100% natural air cooling, it runs constantly at rated capacity. In addition, the product offers simple recycling and breakdown, as well as environmental compliance.

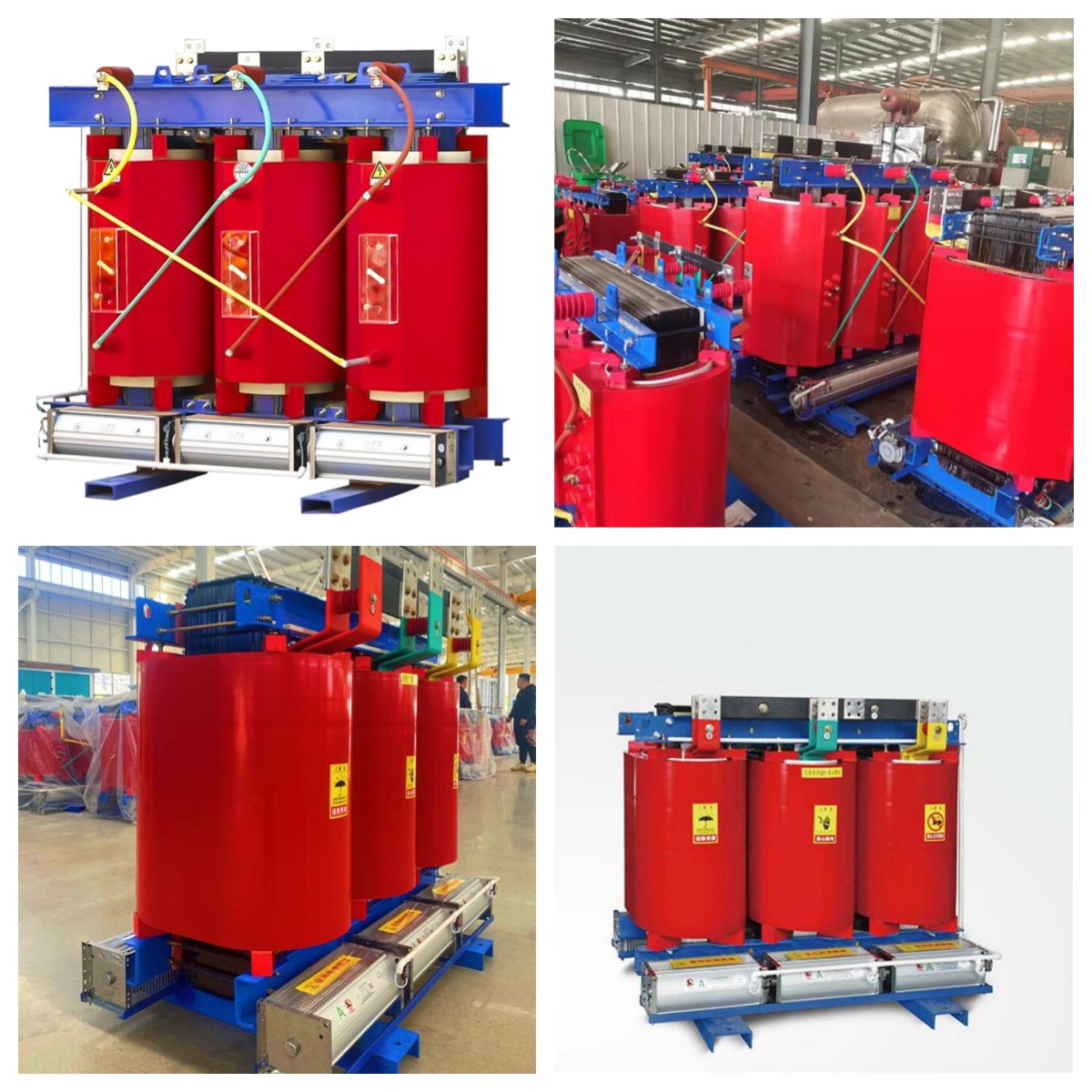

Sample Room


Sample Room


Product Process


product process


Product Accessories


product accessories


Product Parameters


Main Technical Parameters for 10KV SC ( B ) -30-2500TYPE

Rated

Power

( kva )

High

Voltage

( kv )

H. V. Tap

range

LOW

Voltage

( kv )

Connection


symbol


Short

Circuit

Inpendence

(%)

No-load loss

 ( KW )

On-load loss

 ( KW )

sc(B)9

sc(B)10

sc(B)9

sc(B)9

16

6

6.3

10

10.5

11

15

   22

   33

   35

±5%

±2x2.5%

0.4

Dyn11

       6

220

190

750

710

50

310

270

1060

1000

80

420

370

1460

1380

100

450

400

1670

1570

125

530

470

1960

1850

160

610

540

2250

2130

200

700

620

2680

2530

250

810

720

2920

2760

300

990

880

3670

3470

400

1100

980

4220

3990

500

1310

1160

5170

4880

630

1510

1340

6220

5880

630

1460

1300

6310

5960

800

1710

1520

7360

6960

1000

1990

1770

8610

8130

1250

2350

2090

   10260

9690

1600

2760

2450

12400

11730

2000

3400

3050

15300

14450

2500

4000

3600

   18180

17170


Packing and Shipping


packing


Certificate


certificate


FAQ

1. Leading time

For standard product, approximately 15 working days before delivery.

For customized product, approximately 20~30 working days before delivery.

Order quantity/customization requirements can also affect the leading time.

2.Warranty/ Payment terms

2 years of warranty at least.For the first order we normally accept T/T, 30%+70%. Regular customer payment terms to be negotiated by both parties.
