Dry-type transformers, used in various applications, are suitable for intermittent or emergency overload operation, but should not be placed in long-term continuous overload operation due to increased load loss and impedance voltage.
Dry-type transformer, specializing in the production and sales of dry-type transformers, oil-immersed transformers, box-type transformers, etc., with complete models, stable and reliable product quality, complete qualifications, and reasonable prices, it is a trustworthy dry-type transformer manufacturer.
Product Paramenters
10Rated Power (kVA) | High Voltage (kv) | Low Voltage (kv) | Connection symbol | No-load loss(W) | On-load loss(W) | No load current (%) |
400KVA | 10KV 11KV 20KV 35KV | 0.4 | Ydn11 Yyn0 | 980 | 3990 | 1.2 |
500KVA | 1160 | 4880 | 1.2 | |||
630KVA | 1340 | 5880 | 1 | |||
800KVA | 1520 | 6960 | 1 | |||
1000KVA | 1770 | 8130 | 1 | |||
1250KAV | 2090 | 9690 | 1 | |||
1600KVA | 2450 | 11730 | 1 | |||
2000KVA | 3050 | 15960 | 0.8 | |||
2500KAV | 3600 | 18890 | 0.8 |
Products Description
Details Images

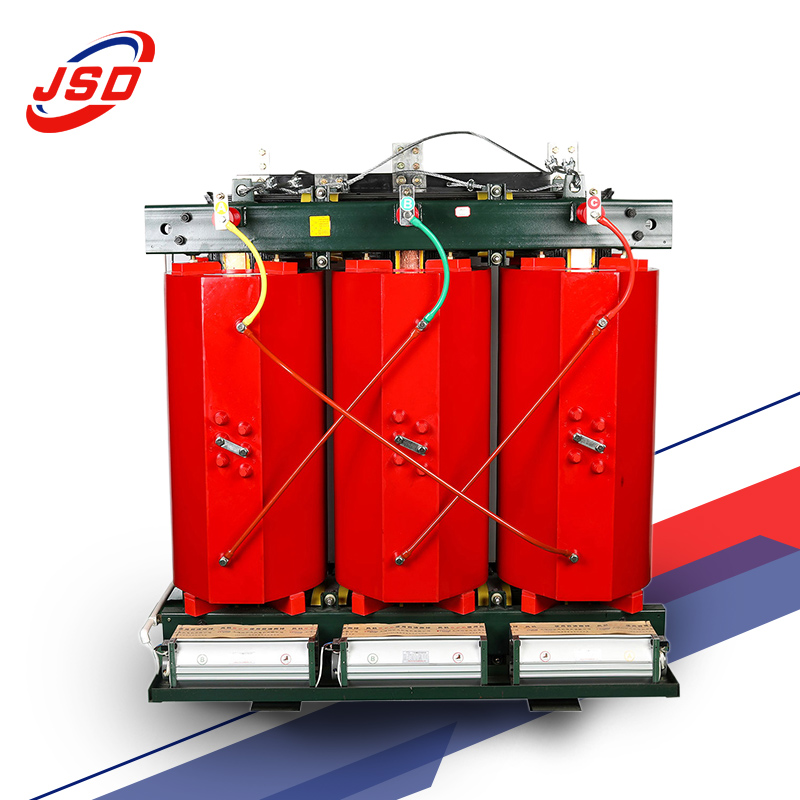

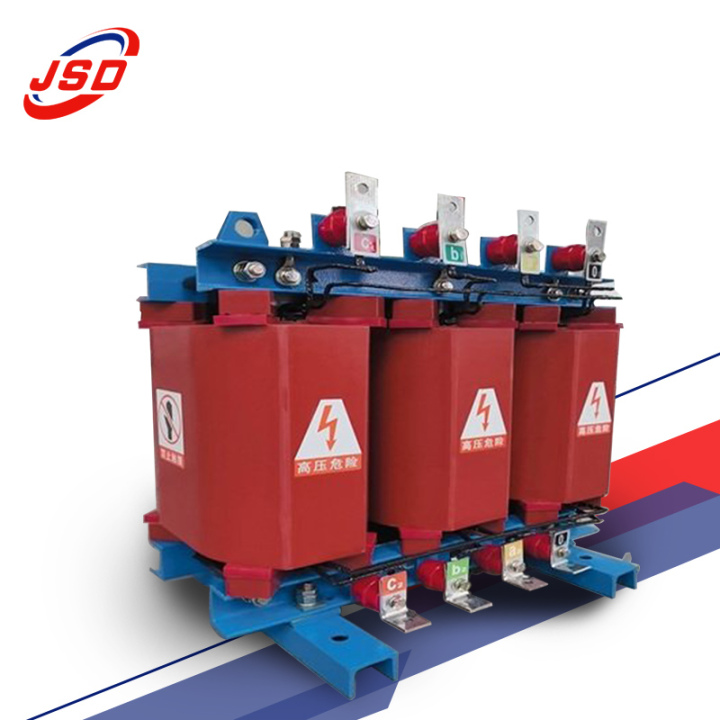

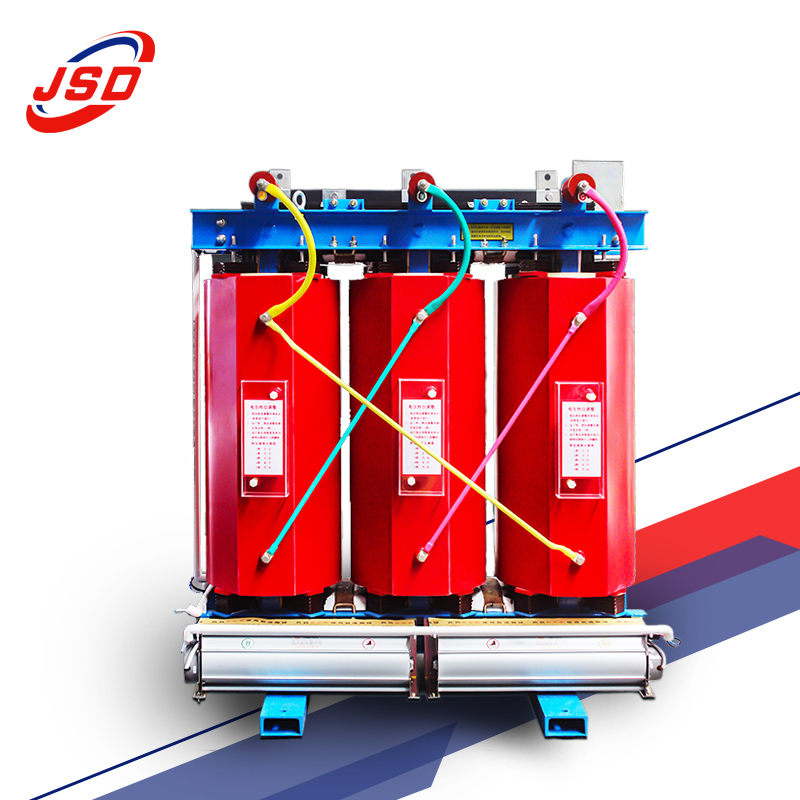

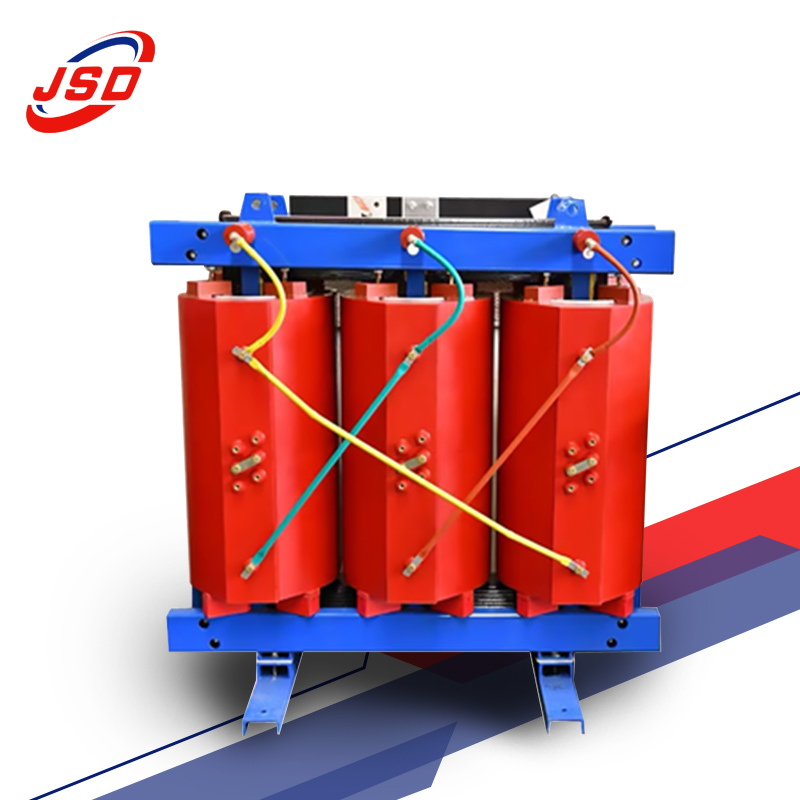

Product Photograph
Company Profile
Certifications
Packaging and delivery
